Mobile Master-150 ELEPHANT

The ELKON Mobile Master-150 ELEPHANT Mobile Concrete Batching Plant is the highest capacity mobile concrete batching plant in the world. The ELKON Mobile Master-150 ELEPHANT Mobile Concrete Batching Plant is equipped with a 6750/4500 l. twin shaft mixer and has a concrete production capacity of 150 m3/h vibrated concrete.

The ELKON Mobile Master-150 ELEPHANT Mobile Concrete Batching Plant is designed on a mono-block chassis and can be transported by towing. It provides the following benefits to its users:

– Quick and easy installation (2-3 days)
– Cost-effective transportation (the main unit can be transported by a single truck and trailer)
– It can be installed on a confined space
– Quick and easy jobsite relocation
– Low foundation cost (installation is on a flat surface)
– Minimises the concrete transportation cost and environmental impact as well
– Easy maintenance and low operating cost
– High production performance with optimised automation system

Mixer Types

Twin Shaft

Twin Shaft

Aggregate Bin Types

Inline

Inline

Square

Square

Aggregate Transfer Types

Conveyor

Conveyor

Production Types

Wet

Wet

Capacity150 m 3 /h
The Capacity of Aggregate Silo4x30 m 3
The Capacity of Aggregate Weigh Hopper9900 kg
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity6750 / 4500 l
Mixer TypeTwin Shaft
Cement Weighing Capacity2500 kg
Water Weighing Capacity1100 kg
Additive Weighing Capacity2x50 l
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)Ø 323 mm
CompressorIncluded
Capacity196 yd 3 /h
The Capacity of Aggregate Silo4x39 yd 3
The Capacity of Aggregate Weigh Hopper21826 lb
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity9 / 6 yd 3
Mixer TypeTwin Shaft
Cement Weighing Capacity5511 lb
Water Weighing Capacity2425 lb
Additive Weighing Capacity2x13,2 gal
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)12 in
CompressorIncluded

Photo Gallery

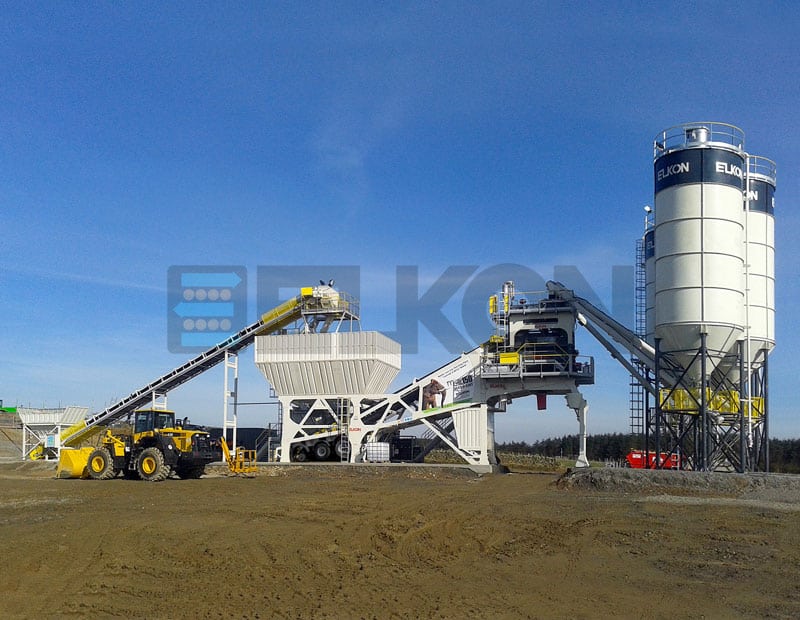

  • Mobile Master-150 ELEPHANT

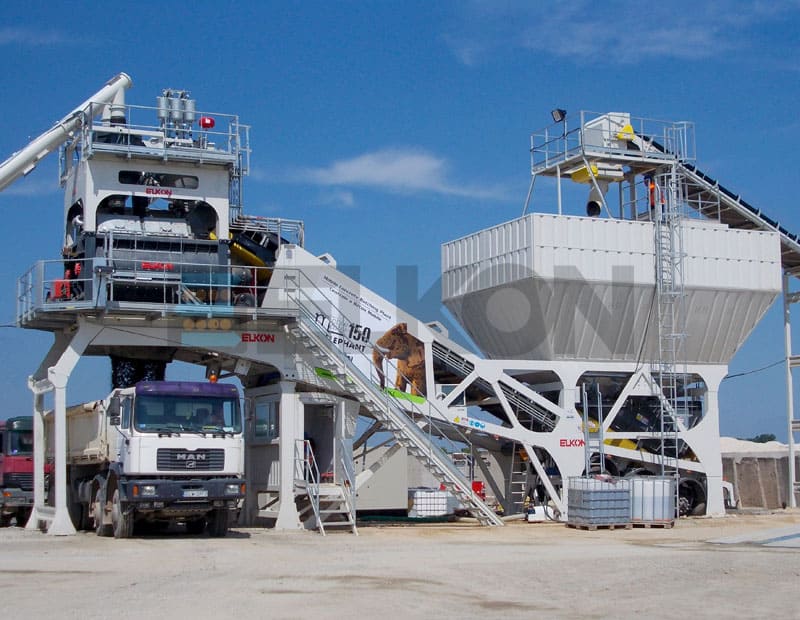

  • Mobile Master-150 ELEPHANT
  • Mobile Master-150 ELEPHANT

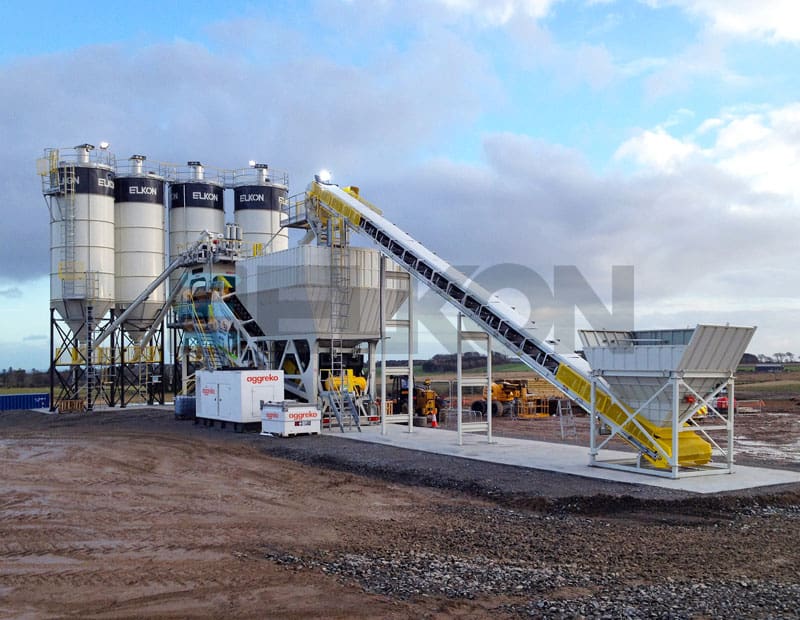

  • Mobile Master-150 ELEPHANT
  • Mobile Master-150 ELEPHANT

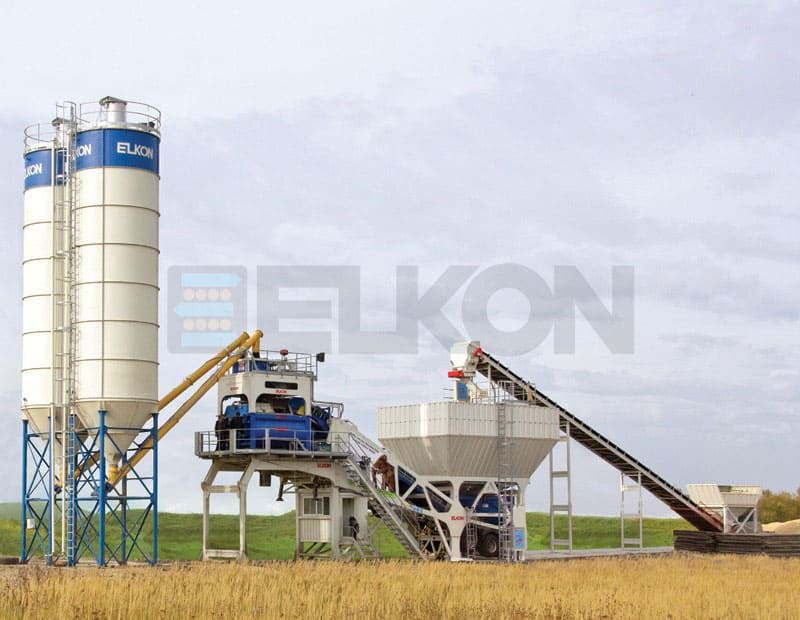

  • Mobile Master-150 ELEPHANT

Product Details

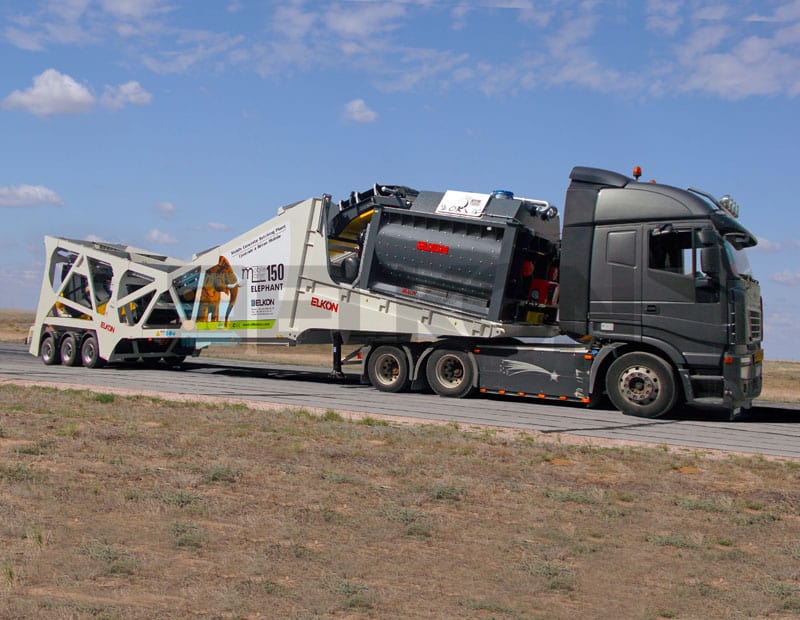

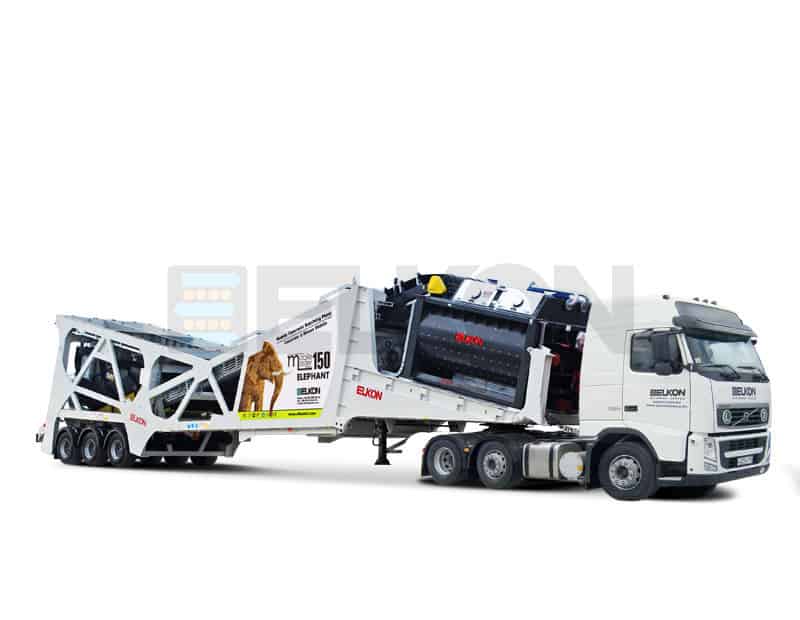

The main unit of ELKON Mobile Concrete Batching Plants is designed on a mono-block chassis and can be transported by a single truck and trailer.

The ELKON Mobile Master-150 ELEPHANT Mobile Concrete Batching Plant is equipped with a 4×30 m3 capacity square type aggregate storage bin and a 6750/4500 l. twin shaft mixer.

With a 150 m³/h production capacity, it is the preferred concrete batching plant for projects which need large amounts of concrete like roads, airports etc.

4 different types of aggregates can be stored in the aggregates bin and the aggregate feeding can be done either by concrete ramp or optional automated aggregate feeding system (eliminates concrete ramp requirement).
