Mobile Master-60 PEGASUS-BEAR-PANTHERA

50 m³/h

Mobile Master-60 PEGASUS-BEAR-PANTHERA

This is the preferred model of ELKON Mobile Master Series in terms of capacity. In addition to the different mixer types such as a 1500/1000 l. pan, planetary or twin shaft mixer, the integrated built-in 36 ton cement silo is also available upon requesty. Production capacity of ELKON Mobile Master-60 Mobile Concrete Batching Plant is 50 m³/h vibrated concrete.

The ELKON Mobile Master-60 Mobile Concrete Batching Plant is designed on a mono-block chassis on which all the components take place can be transported by towing. It provides the following benefits to its users:

– Quick and easy installation (only 1 day)
– Cost-effective transportation (the main unit can be transported by a single truck and trailer)
– Maximum mobility with 36 tons capacity integrated cement silo (only for Bear model)
– It can be installed in a confined space
– Quick and easy jobsite relocation
– Low foundation cost (installation is on a flat concrete surface)
– Minimises the concrete transportation cost and environmental impact as well
– Easy maintenance and low operating cost
– High production performance with optimised automation system

Mixer Types

Twin Shaft

Twin Shaft

Planetary

Planetary

Pan

Pan

Aggregate Bin Types

Square

Square

Aggregate Transfer Types

Conveyor

Conveyor

Production Types

Wet

Wet

Dry

Dry

Capacity50 m 3 /h
The Capacity of Aggregate Silo4x13,5 m 3
The Capacity of Aggregate Weigh Hopper2500 kg
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity1500 / 1000 l
Mixer TypePan / Planetary / Twin Shaft
Cement Weighing Capacity600 kg
Water Weighing Capacity300 kg
Additive Weighing Capacity2x25 l
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)Ø 220 mm
CompressorIncluded
Capacity65 yd 3 /h
The Capacity of Aggregate Silo4x18 yd 3
The Capacity of Aggregate Weigh Hopper5511 lb
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity2 / 1,3 yd 3
Mixer TypePan / Planetary / Twin Shaft
Cement Weighing Capacity1323 lb
Water Weighing Capacity661 lb
Additive Weighing Capacity2x6,6 gal
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)8 in
CompressorIncluded

Photo Gallery

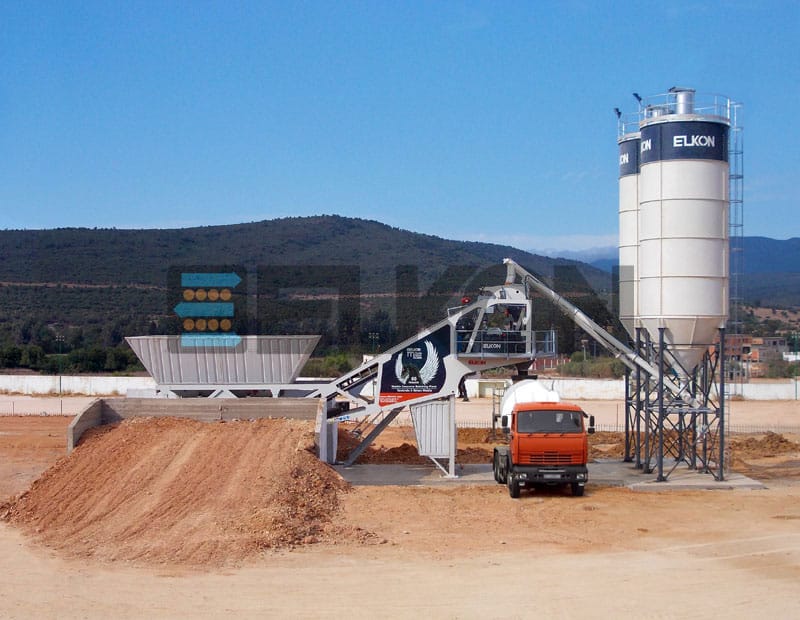

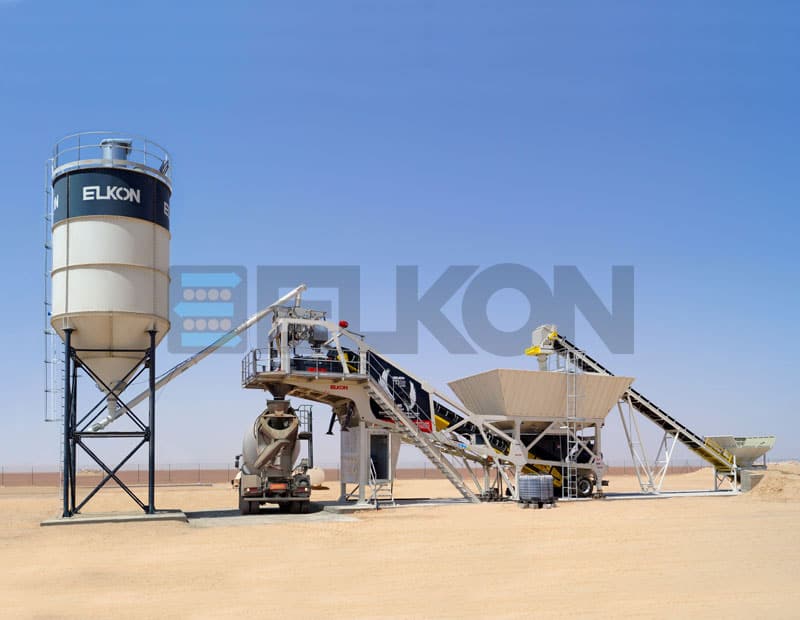

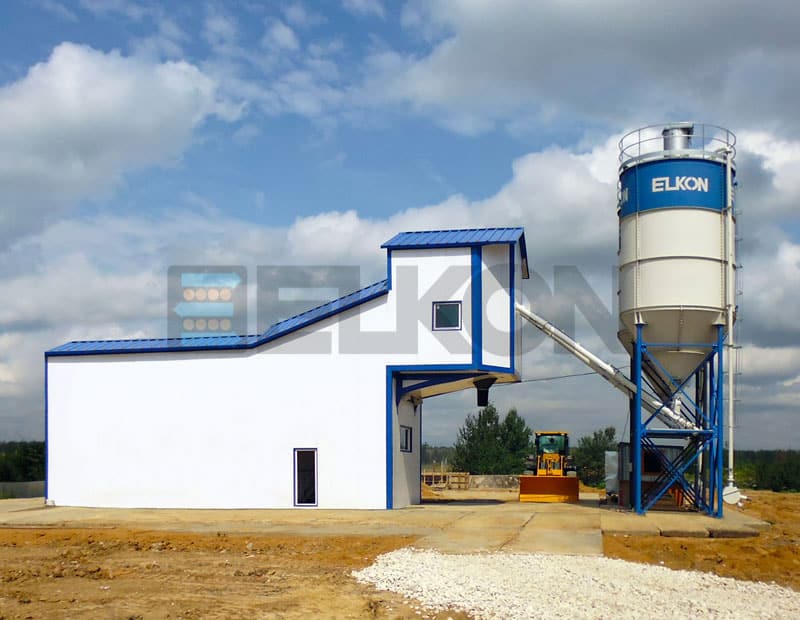

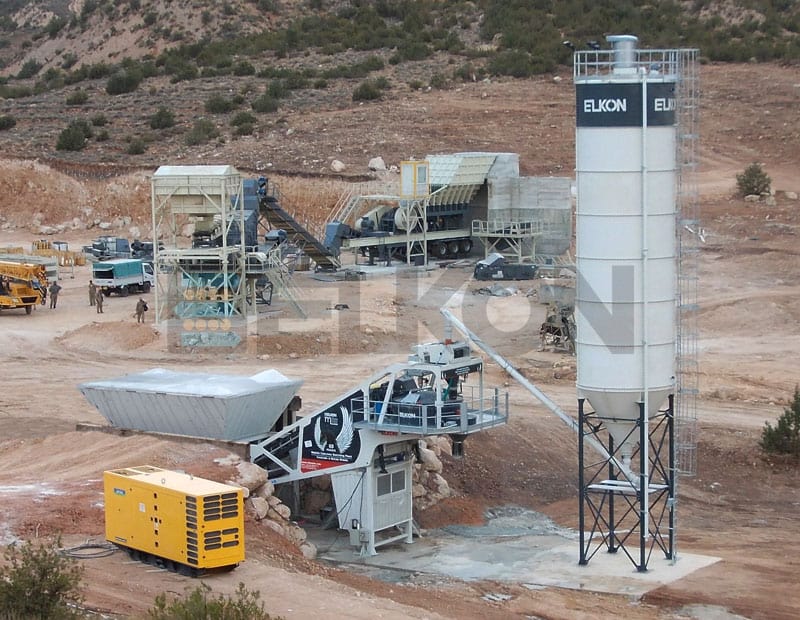

  • Mobile Master-60 PEGASUS-BEAR-PANTHERA
  • Mobile Master-60 PEGASUS-BEAR-PANTHERA
  • Mobile Master-60 PEGASUS-BEAR-PANTHERA
  • Mobile Master-60 PEGASUS-BEAR-PANTHERA
  • Mobile Master-60 PEGASUS-BEAR-PANTHERA
  • Mobile Master-60 PEGASUS-BEAR-PANTHERA
  • Mobile Master-60 PEGASUS-BEAR-PANTHERA
  • Mobile Master-60 PEGASUS-BEAR-PANTHERA
  • Mobile Master-60 PEGASUS-BEAR-PANTHERA

Product Details

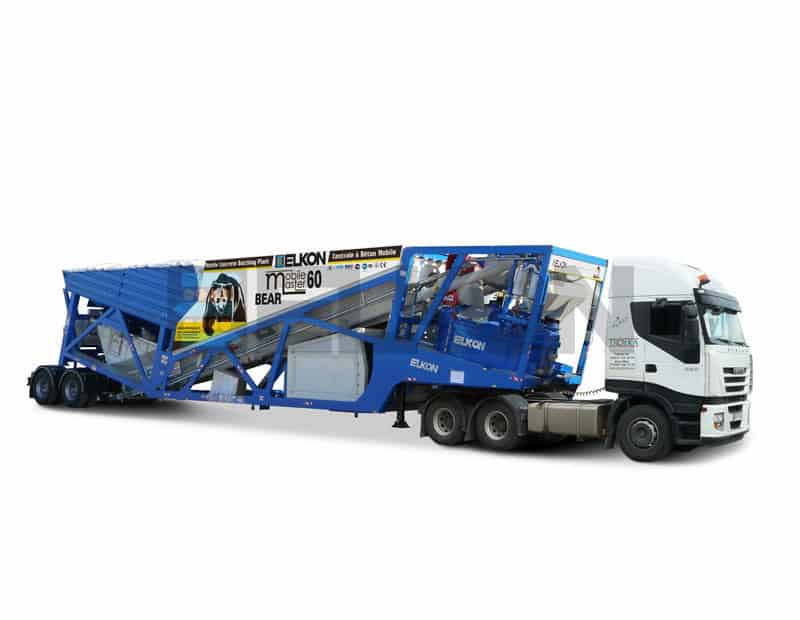

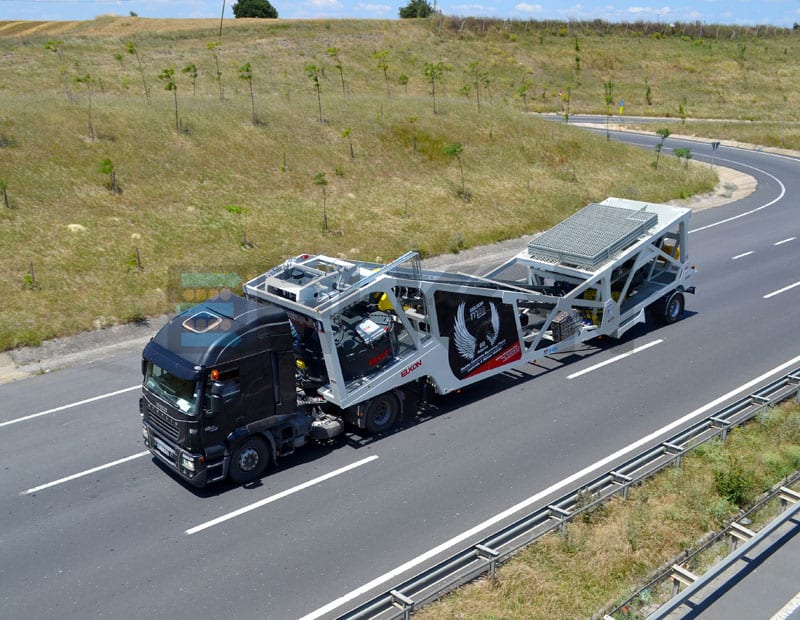

The main unit of ELKON Mobile Concrete Batching Plants is designed on a mono-block chassis which is equipped with axle and tires and the main unit can be transported by one truck trailer.

ELKON offers the widest possible range of products, in order to meet the different requirements of clients, provides 3 different options for the users of the 50 m3/h capacity mobile concrete batching plant:

-ELKON Mobile Master-60 PEGASUS Mobile Concrete Batching Plant equipped with a 1500/1000 l. pan mixer.

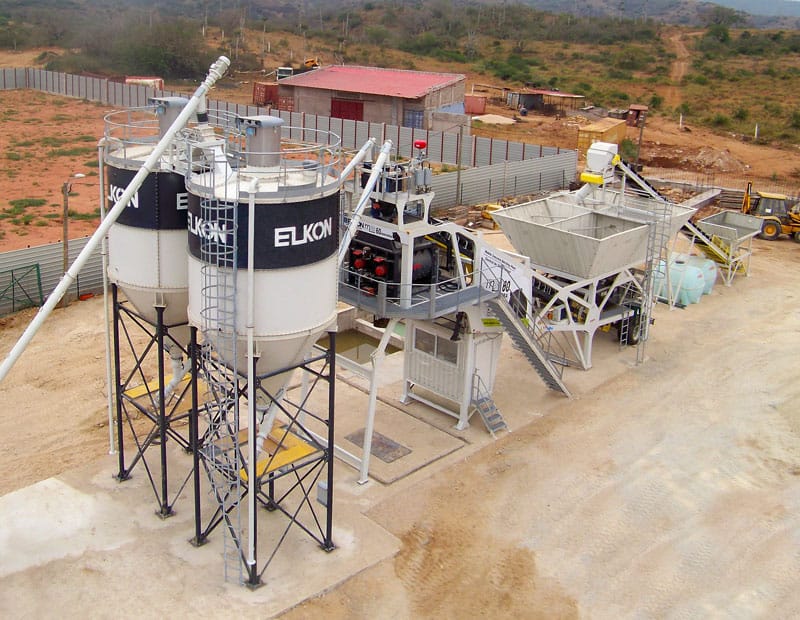

-ELKON Mobile Master-60 PANTHERA Mobile Concrete Batching Plant equipped with a 1500/1000 l. twin shaft mixer.

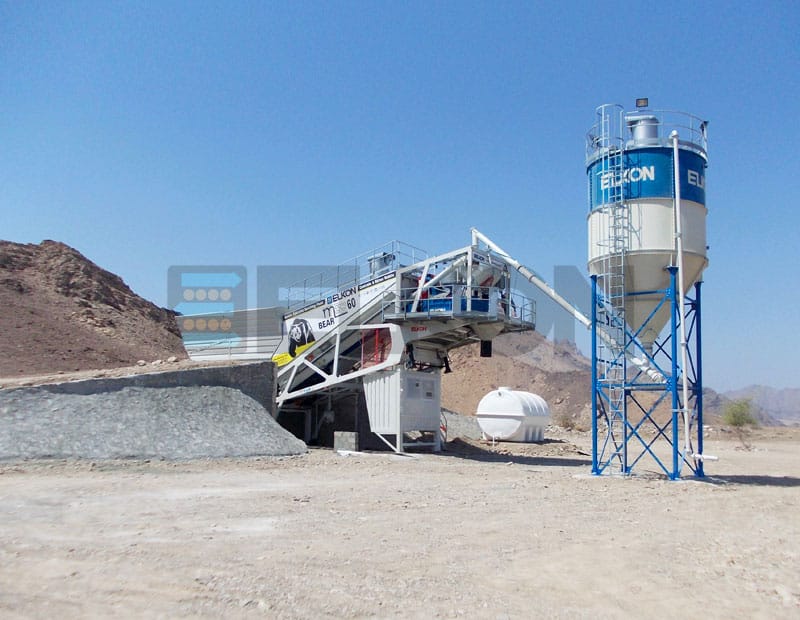

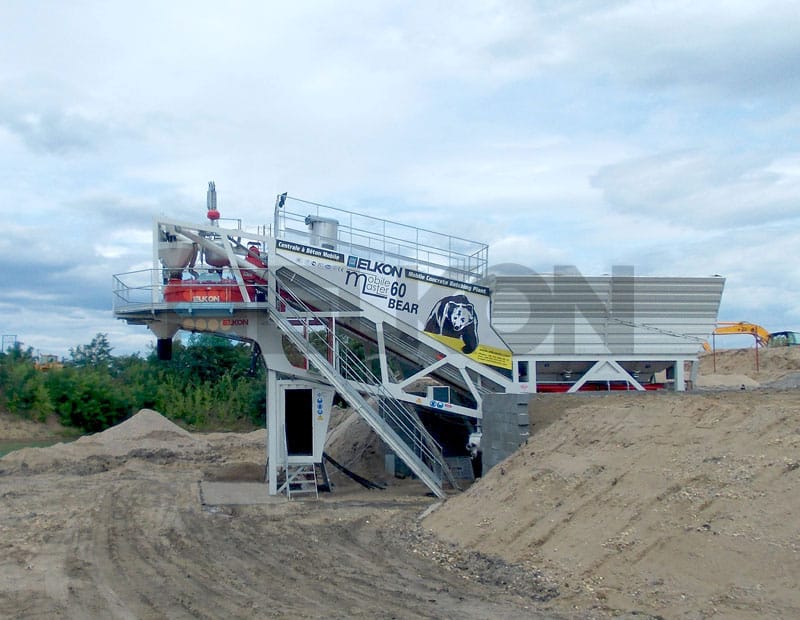

-ELKON Mobile Master-60 BEAR Mobile Concrete Batching Plant is equipped with a 1500/1000 l. Pan Mixer and 36 ton integrated cement silo. All components of mobile plant can be transported by a single truck and trailer.

4 different types of aggregates can be stored in the aggregate bin and the aggregate feeding can be done either by concrete ramp or optional automated aggregate feeding system (eliminates concrete ramp requirement).
