Mobile Master-135 JAGUAR

The ELKON Mobil Master-135 JAGUAR Mobile Concrete Batching Plant provides high production capacity along with all the advantages of a mobile concrete batching plant. It has a 110 m3/h vibrated concrete production capacity with a 4500/3000 l. twin shaft mixer.

An 4×22,5 m³ capacity square type aggregate bin, 4×20 m³ capacity linear type aggregate bin option is also available which is equipped with axles and tires.

The ELKON Mobile Master-135 JAGUAR Mobile Concrete Batching Plant provides the following benefits to its users:

-Quick and easy installation (only 1-2 days)
-Cost-effective transportation (the main unit can be transported by a single truck and trailer)
-It can be installed on a confined space
-Quick and easy jobsite relocation
-Low foundation cost (installation is on a flat concrete surface)
-Minimises the concrete transportation cost and environmental impact as well
-Easy maintenance and low operating cost
-High production performance with optimised automation system

Mixer Types

Twin Shaft

Twin Shaft

Aggregate Bin Types

Inline

Inline

Square

Square

Aggregate Transfer Types

Conveyor

Conveyor

Production Types

Wet

Wet

Dry

Dry

Capacity110 m 3 /h
The Capacity of Aggregate Silo4x22,5 m 3
The Capacity of Aggregate Weigh Hopper6600 kg
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity4500 / 3000 l
Mixer TypeTwin Shaft
Cement Weighing Capacity1600 kg
Water Weighing Capacity900 kg
Additive Weighing Capacity2x25 l
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)Ø 273 mm
CompressorIncluded
Capacity144 yd 3 /h
The Capacity of Aggregate Silo4x29 yd 3
The Capacity of Aggregate Weigh Hopper14550 lb
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity6 / 4 yd 3
Mixer TypeTwin Shaft
Cement Weighing Capacity3527 lb
Water Weighing Capacity1984 lb
Additive Weighing Capacity2x6,6 gal
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)10 in
CompressorIncluded

Photo Gallery

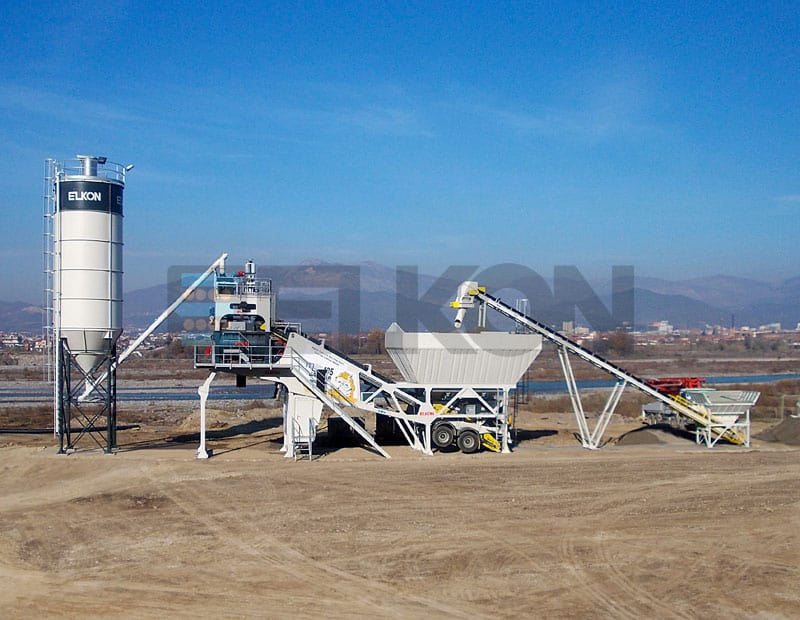

  • Mobile Master-135 JAGUAR

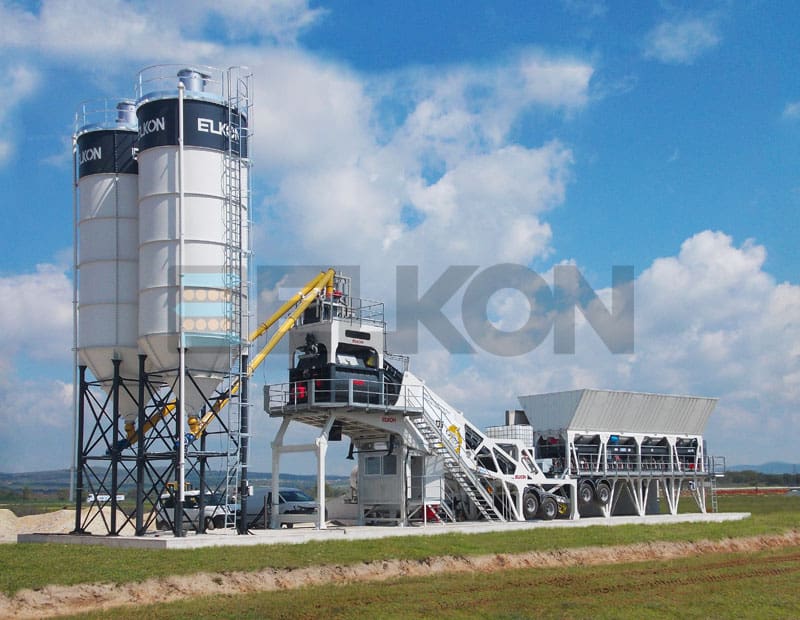

  • Mobile Master-135 JAGUAR

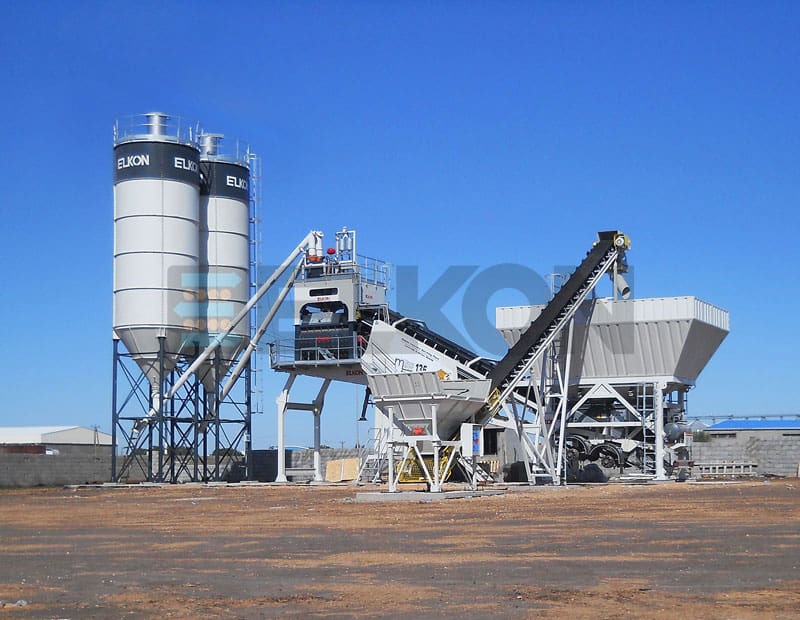

  • Mobile Master-135 JAGUAR

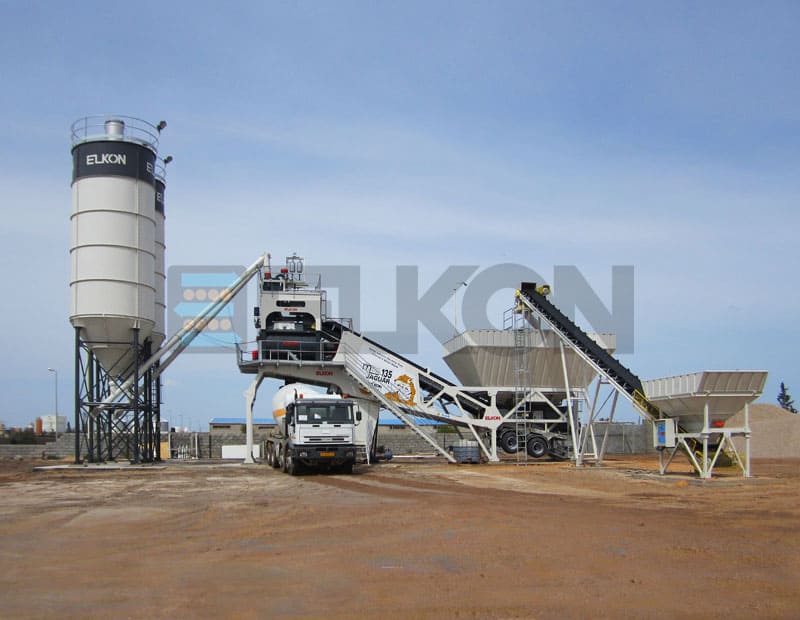

  • Mobile Master-135 JAGUAR
  • Mobile Master-135 JAGUAR

Product Details

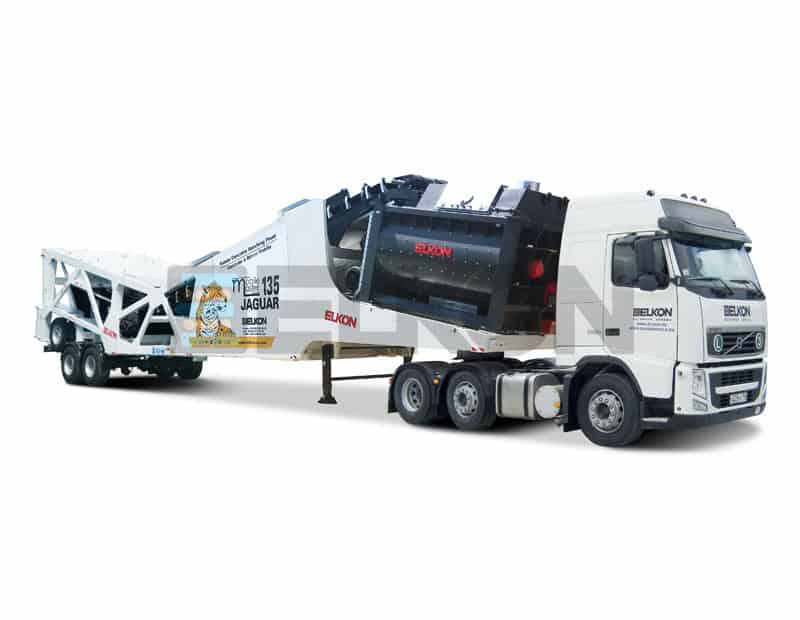

The main unit of the ELKON Mobile Concrete Batching Plants is designed on a mono-block chassis and can be transported by a single truck and trailer.

The ELKON Mobile Master-30 EAGLE mobile concrete batching plant which is equipped with a 4×10 m³ square type aggregate bin and a 750/500 l. pan or single shaft mixer is the smallest plant of the series and can be installed in only 1 day.

4 different types of aggregate material can be stored in the 4×10 m³ aggregate storage bin and the aggregate feeding can be done either by concrete ramp or optional automated aggregate feeding system (eliminates concrete ramp requirement).
