Mobile Master-30 EAGLE

30 m³/h

Mobile Master-30 EAGLE

The Mobile Master-30 EAGLE Mobile Concrete Batching Plant can be equipped with either a 750/500 l. pan mixer or 750/500 l. single shaft mixer and provides 30 m³/h vibrated concrete production capacity.

The ELKON Mobile Master-30 EAGLE Mobile Concrete Batching Plant is designed on a mono-block chassis. It can be transported by towing and provides the following benefits to its users:

– Quick and easy installation (only 1 day)
– Cost-effective transportation (the main unit can be transported by a single truck & trailer)
– It can be installed in a confined space
– Quick and easy jobsite relocation
– Low foundation cost (installation on a flat concrete surface)
– Minimizes the concrete transportation cost and environmental impact as well
– Easy maintenance and low operating cost
– High production performance with optimised automation system

Mixer Types

Single Shaft

Single Shaft

Planetary

Pan

Aggregate Bin Types

Square

Square

Aggregate Transfer Types

Conveyor

Conveyor

Production Types

Wet

Wet

Capacity30 m 3 /h
The Capacity of Aggregate Silo4x10 m 3
The Capacity of Aggregate Weigh Hopper1250 kg
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity750/500 L
Mixer TypePan / Single Shaft
Cement Weighing Capacity300 kg
Water Weighing Capacity200 kg
Additive Weighing Capacity2x15 l
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)165 mm
CompressorIncluded
Capacity39 yd3/h
The Capacity of Aggregate Silo4x13 yd 3
The Capacity of Aggregate Weigh Hopper2756 lb
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity1 / 0,7 yd3
Mixer TypePan / Single Shaft
Cement Weighing Capacity661 lb
Water Weighing Capacity441 lb
Additive Weighing Capacity2x4 gal
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)6 in
CompressorIncluded

Photo Gallery

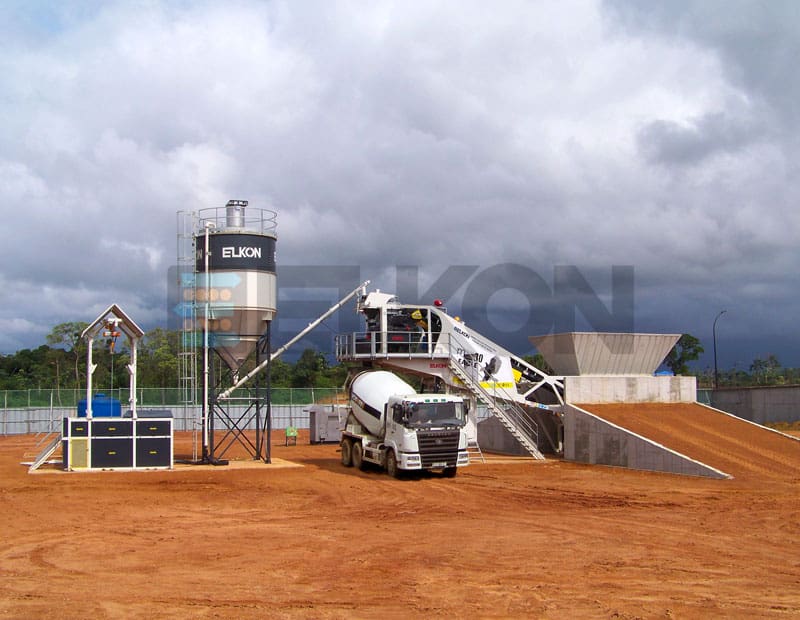

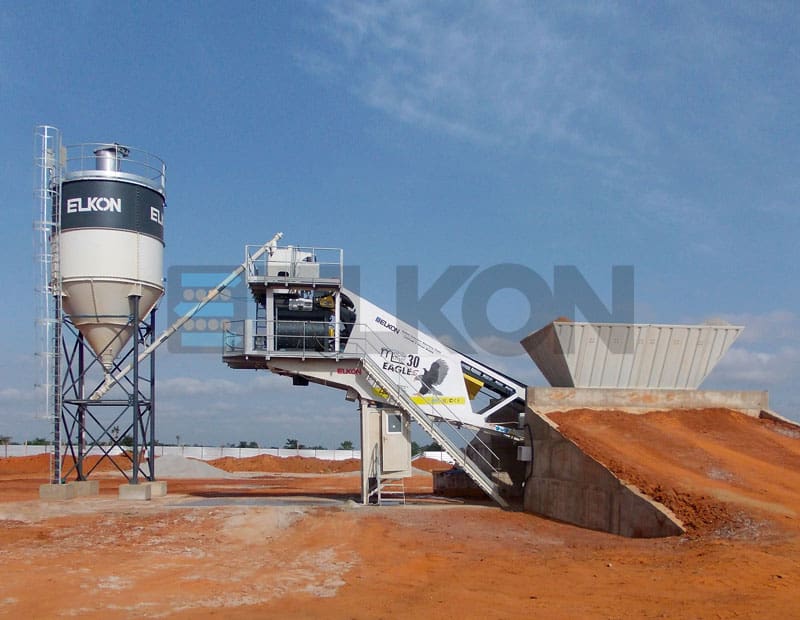

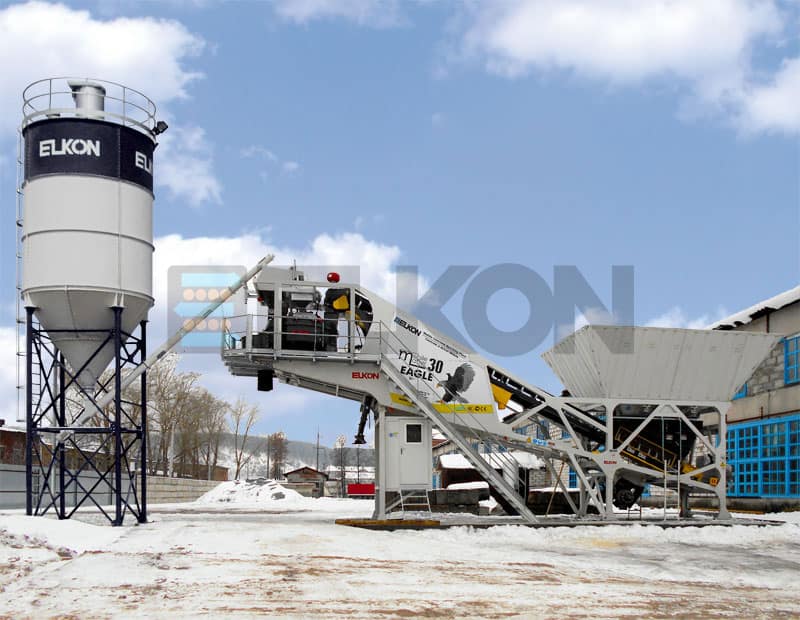

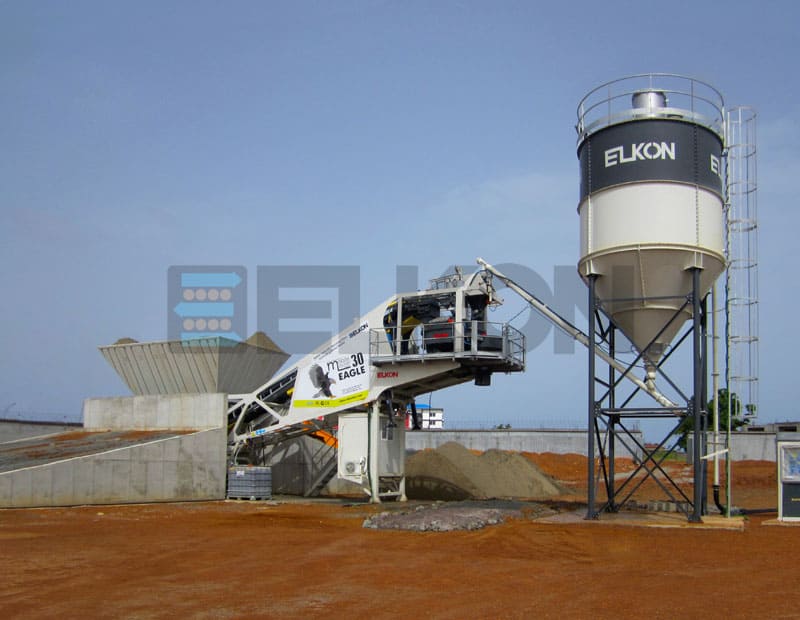

  • Mobile Master-30 EAGLE
  • Mobile Master-30 EAGLE
  • Mobile Master-30 EAGLE
  • Mobile Master-30 EAGLE
  • Mobile Master-30 EAGLE
  • Mobile Master-30 EAGLE

Product Details

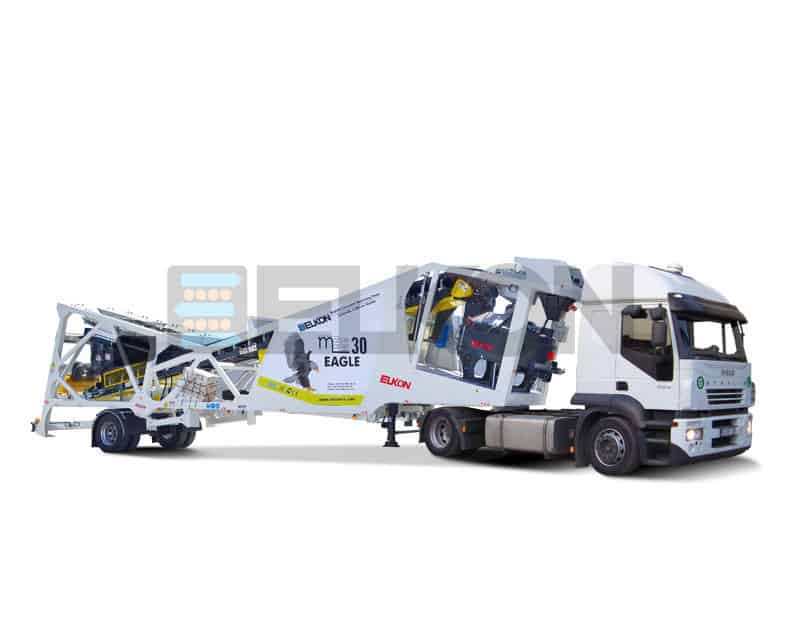

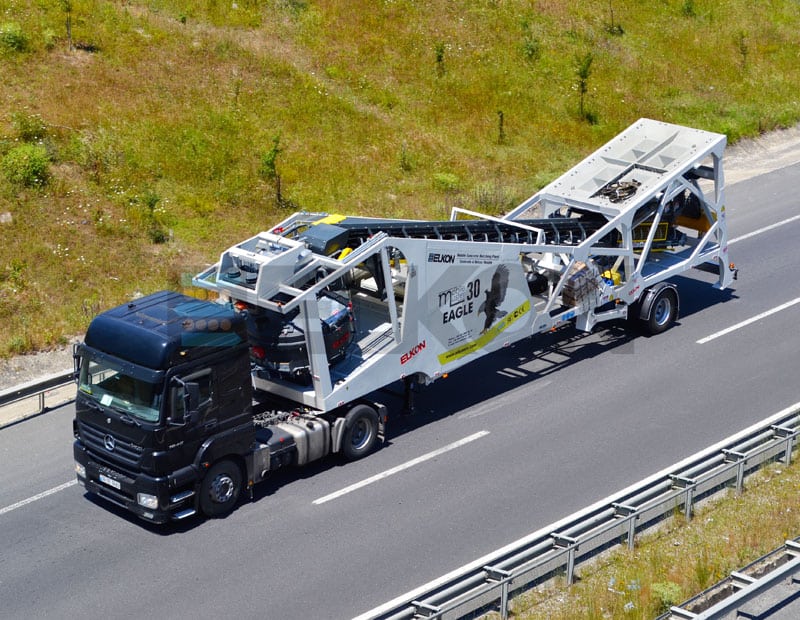

The main unit of ELKON Mobile Concrete Batching Plants is designed on a mono-block chassis which is equipped with axle and tyres and the main unit can be transported by a single truck & trailer.

The ELKON Mobile Master-30 EAGLE mobile concrete batching plant is equipped with a 4×10 m³ square type aggregate bin and a 750/500 l. pan or a single shaft mixer and can be installed in only 1 day.

4 different types of aggregate material can be stored in the 4×10 m³ aggregate storage bin and the aggregate feeding can be done either by concrete ramp or optional automated aggregate feeding system (eliminates concrete ramp requirement).
