The ELKON MIX MASTER-30 On-Site Type Concrete Batching Plant makes it possible to produce concrete economically even for small projects where the requirement for concrete is relatively low. Concrete produced with the Mix Master-30 On-Site Concrete Plant is fully compliant with international standards and it is possible to print out receipts using a laptop and printer.
ELKON Mix Master-30 site-type concrete plant is ready for concrete production with a short installation time of less than 1 hour.
Mix Master-30 – On-Site Concrete Batching Plants
30 m³/h
The latest design of ELKON innovation team, ELKON MIX MASTER-30 On-site Concrete Batching Plant, makes it possible to produce concrete wherever needed according to international standards in an economical way even for small projects that require relatively small quantity of concrete.
ELKON Mix Master-30 On-Site Concrete Batching Plant which can be ready for concrete production within 1 hour wherever concrete is required, provides the following benefits:
– Quick installation without crane and quick relocation (only 1 hour)
– No need for any concrete foundation
– Installation on a very small space

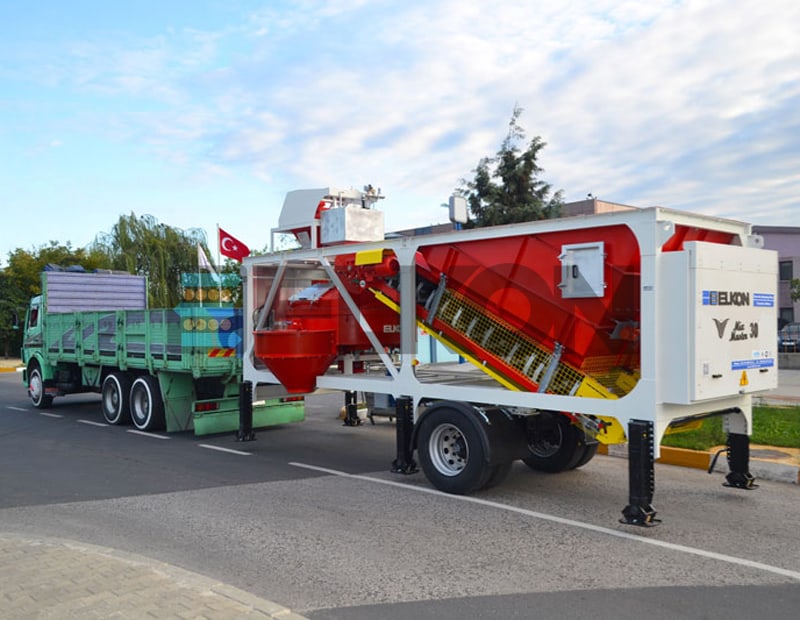

– Transportable by towing on roads
– Cost effective shipping to overseas (can be fit into 1 unit 40’OT Container along with the bag cement feeding system)
– No permission required for concrete production
– Allowing concrete production on site, significantly reduces the concrete transportation cost
– High quality and precise concrete production
Mixer Types
Planery
Pan
Production Types
Wet
| Capacity | 30 m 3 /h |
| The Capacity of Aggregate Silo | 2x5 m 3 or 4x5 m 3 |
| The Capacity of Aggregate Weigh Hopper | Aggregate is weighing in mixer |
| Loading Type of Aggregate to the Mixer | Transfer Conveyor |
| Mixer Capacity | 750/500 L |
| Mixer Type | Pan / Planetary |
| Cement Weighing Capacity | 300 kg |
| Water Weighing Capacity | 200 kg |
| Additive Weighing Capacity | 1x25 l (for 1 Type Chemical Additive) |
| Control System | Included |
| Operator Cabinet | - |
| Cement Screw Diameter (Ø) | Ø 165 mm |
| Compressor | Included |
| Capacity | 39 yd3/h |
| The Capacity of Aggregate Silo | 2x6,5 yd3 or 4x6,5 yd3 |
| The Capacity of Aggregate Weigh Hopper | Aggregate is weighing in mixer |
| Loading Type of Aggregate to the Mixer | Transfer Conveyor |
| Mixer Capacity | 1 / 0,7 yd3 |
| Mixer Type | Pan / Planetary |
| Cement Weighing Capacity | 661 lb |
| Water Weighing Capacity | 441 lb |
| Additive Weighing Capacity | 1x6,6 gal (for 1 Type Chemical Additive) |
| Control System | Included |
| Operator Cabinet | - |
| Cement Screw Diameter (Ø) | 6 in |
| Compressor | Included |

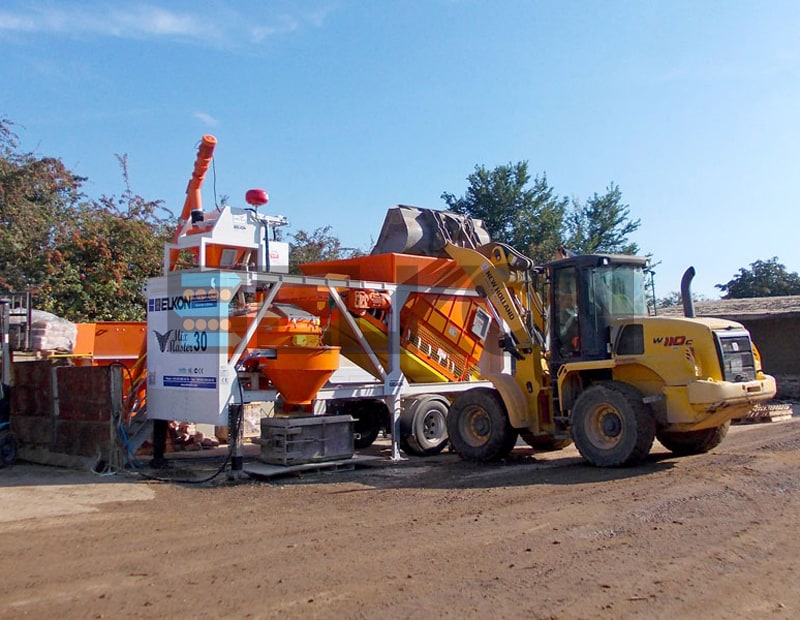

Photo Gallery
On-Site Concrete Batching Plants – Product Details

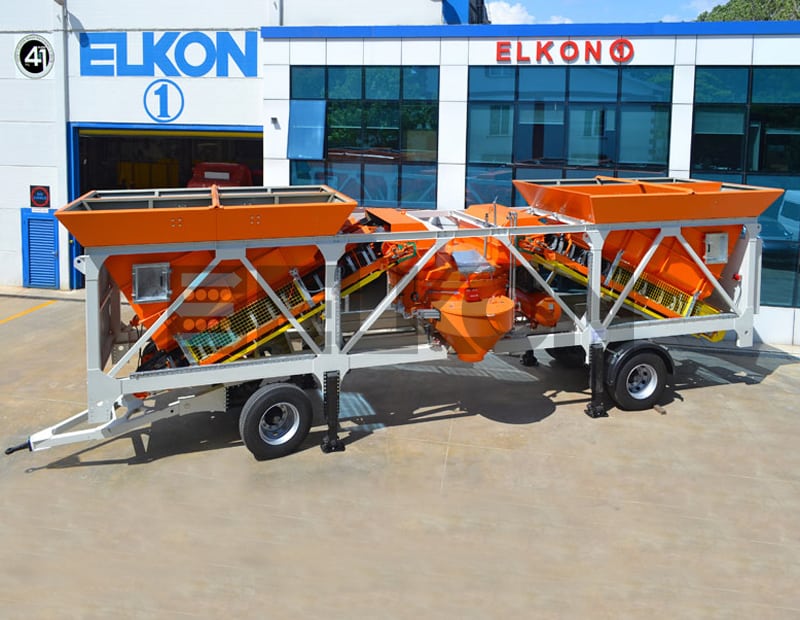

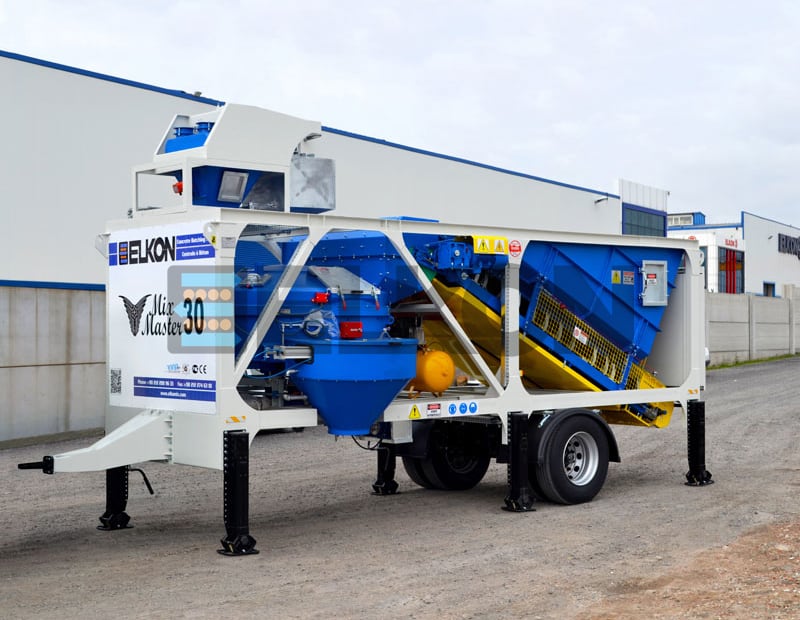

All components of the on-site concrete Batching Plant, including aggregate storage bins, pan / planetary mixer, cement, water and additive weighing hoppers, water pump, control panel and power board are installed on a single trailer chassis equipped with axle and tires. Thus, ELKON MIX MASTER-30 On-Site Concrete Batching Plant can be installed on a very small space and can be ready for concrete production within 1 hour. Moreover, there is no need for crane to install ELKON Mix Master-30 On-Site Concrete Batching Plant. Therefore, it allows concrete production in anywhere concrete is required.
Thanks to precise weigh hoppers and automation system which fully controls concrete production process, it is possible to produce concrete according to the international standards.
ELKON MIX MASTER-30 On-Site Concrete Batching Plant can be equipped with either pan or planetary mixer and either 2 or 4 compartments of aggregate with the storage capacity of 5 m³ each as per the customer’s requirements.

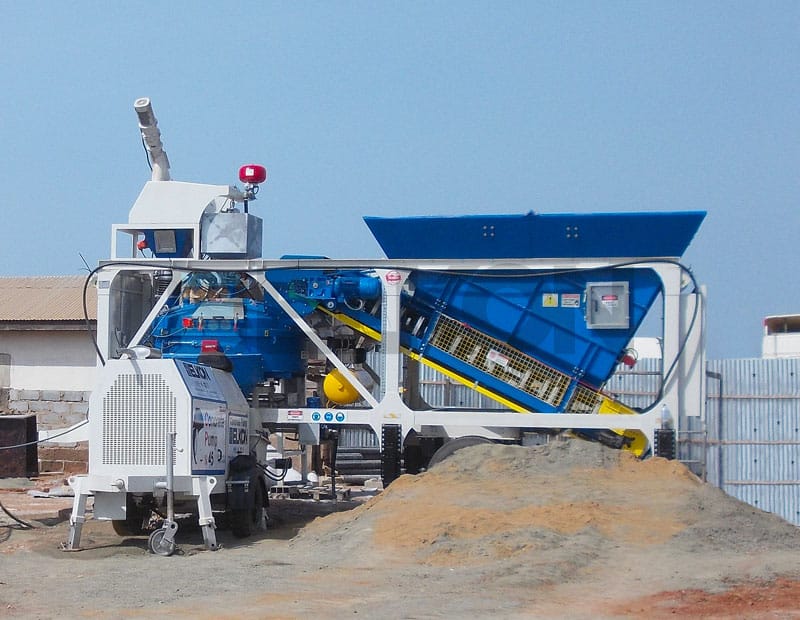

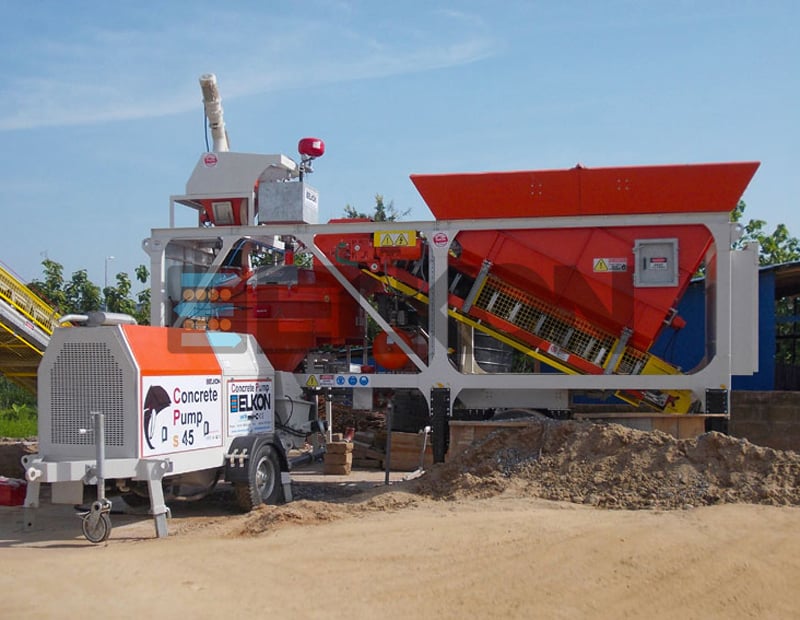

ELKON Mix Master-30 On-Site Concrete Batching Plant can be directly accompanied with mobile or stationary concrete pumps. Moreover, it can discharge concrete into truck mixer by means of an optional concrete discharge belt.

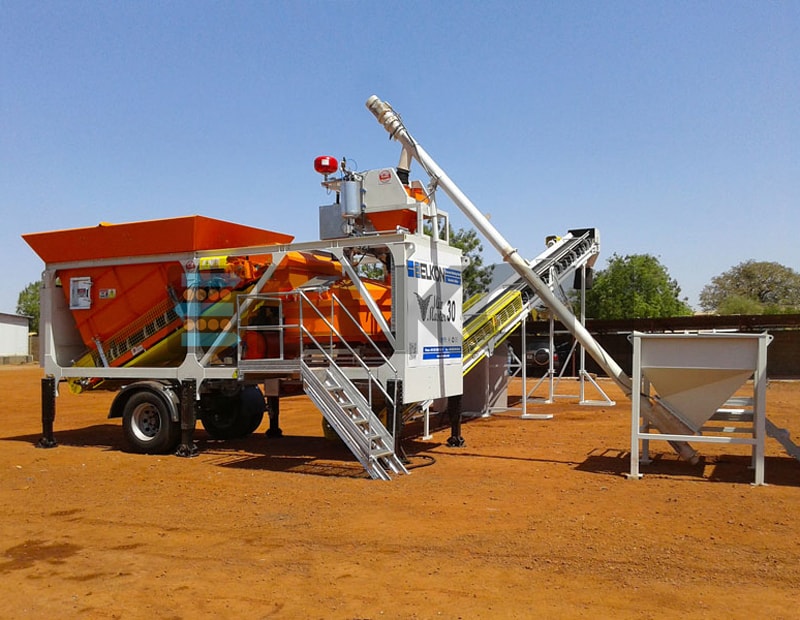

Depending on the cement supply conditions, bag and/or big bag cement feeding system or cement silo can be used with ELKON Mix Master-30 On-Site Concrete Batching Plant.
For additional information please visit our On-Site Concrete Batching Plants – Frequently Asked Questions page.
