Mobile Master-100 LION

90 – 100 m³/h

Mobile Master-100 LION

The ELKON Mobile Master-100 LION Mobile Concrete Batching Plant is equipped with a 3000/2000 l. twin shaft mixer, produces 2 m³ and has a capacity of 90 m³/h of vibrated concrete, whereas the ELKON Mobile Master-100 LION+ Mobile Concrete Batching Plant is equipped with a 3750/2500 l. twin shaft mixer and produces of 100 m³/h of vibrated concrete.

The ELKON Mobile Master-100 Lion Mobile Concrete Batching Plant is designed on a mono-block chassis and can be transported by towing.

It provides the following benefits to its users:

– Quick and easy installation (only 1-2 days)
– Cost-effective transportation (the main unit can be transported by a single truck and trailer)
– It can be installed on a confined space
– Quick and easy jobsite relocation
– Low foundation cost (installation is on a flat concrete surface)
– Minimises the concrete transportation cost and environmental impact as well
– Easy maintenance and low operating cost
– High production performance with optimised automation system

Mixer Types

Twin Shaft

Twin Shaft

Aggregate Bin Types

Square

Square

Aggregate Transfer Types

Conveyor

Conveyor

Production Types

Wet

Wet

Dry

Dry

Capacity90-100* m 3 /h
The Capacity of Aggregate Silo4x22,5 m 3
The Capacity of Aggregate Weigh Hopper5000 kg - 6250* kg
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity3000 / 2000 l or 3750 / 2500* l
Mixer TypeTwin Shaft
Cement Weighing Capacity1300 kg - 1450* kg
Water Weighing Capacity600 kg - 750* kg
Additive Weighing Capacity2x25 l
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)Ø 273 mm
CompressorIncluded
Capacity118-131* yd 3 /h
The Capacity of Aggregate Silo4x29 yd 3
The Capacity of Aggregate Weigh Hopper11023 lb - 13778* lb
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity4 / 2,6 yd 3 or 5 / 3,3* yd 3
Mixer TypeTwin Shaft
Cement Weighing Capacity2866 lb - 3196* lb
Water Weighing Capacity1323 lb - 1653* lb
Additive Weighing Capacity2x6,6 gal
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)10 in
CompressorIncluded

Photo Gallery

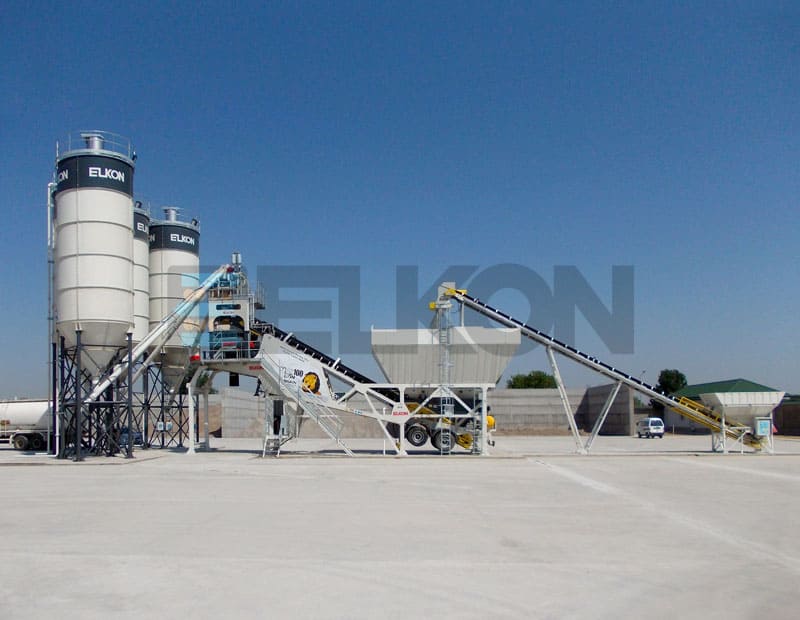

  • Mobile Master-100 LION

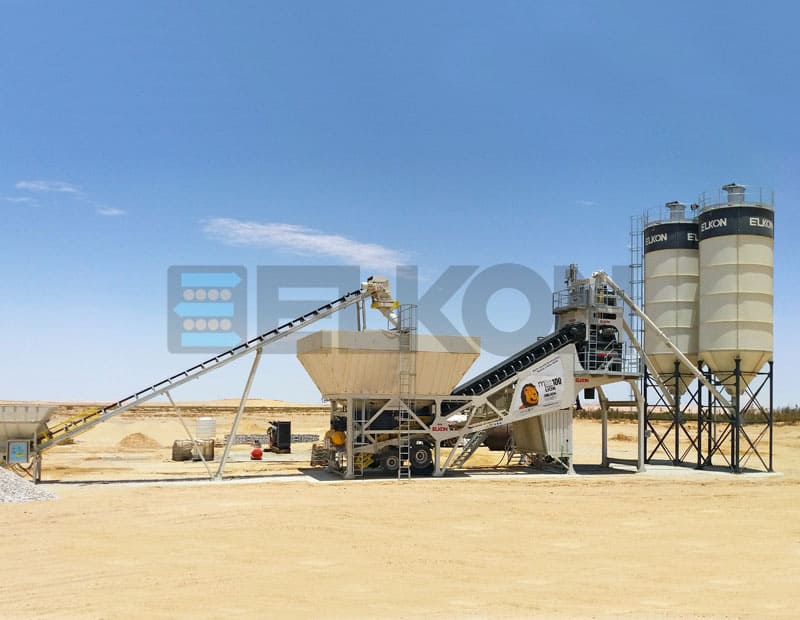

  • Mobile Master-100 LION
  • Mobile Master-100 LION

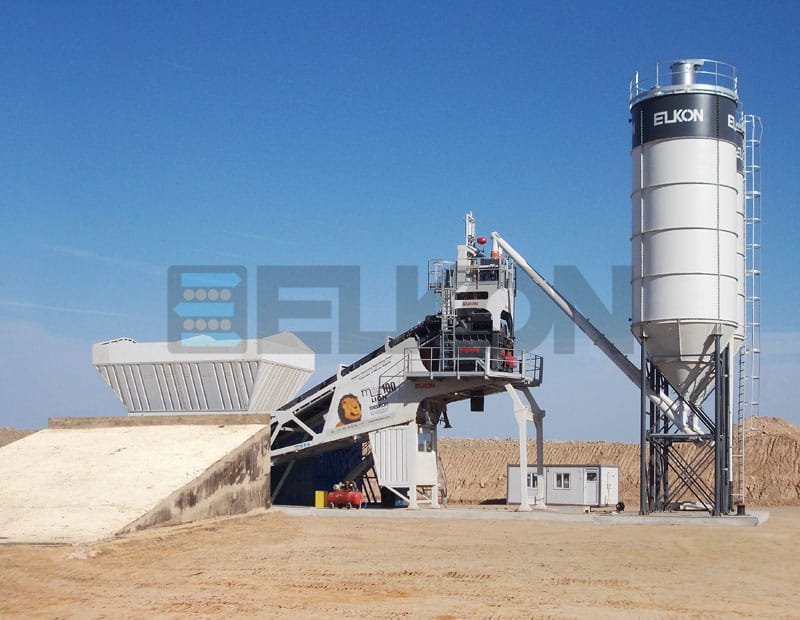

  • Mobile Master-100 LION
  • Mobile Master-100 LION

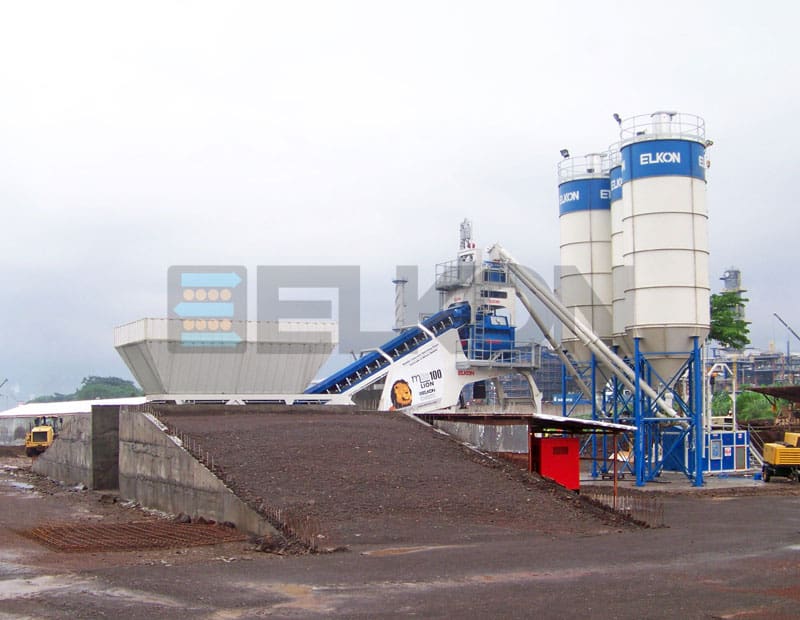

  • Mobile Master-100 LION

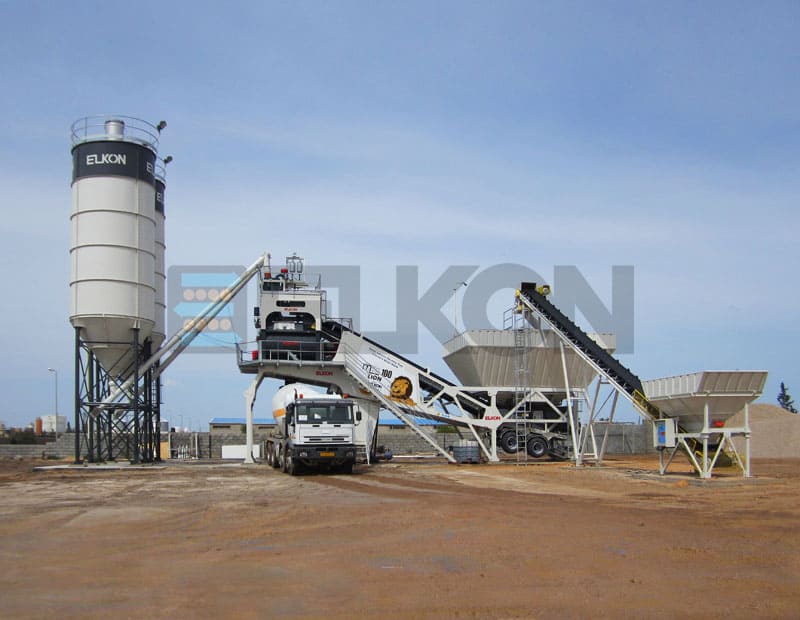

  • Mobile Master-100 LION

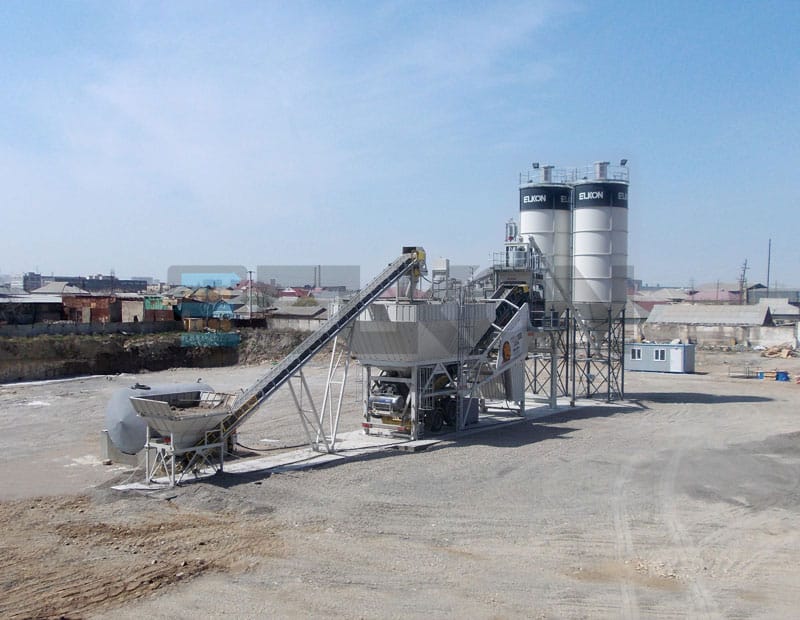

  • Mobile Master-100 LION

Product Details

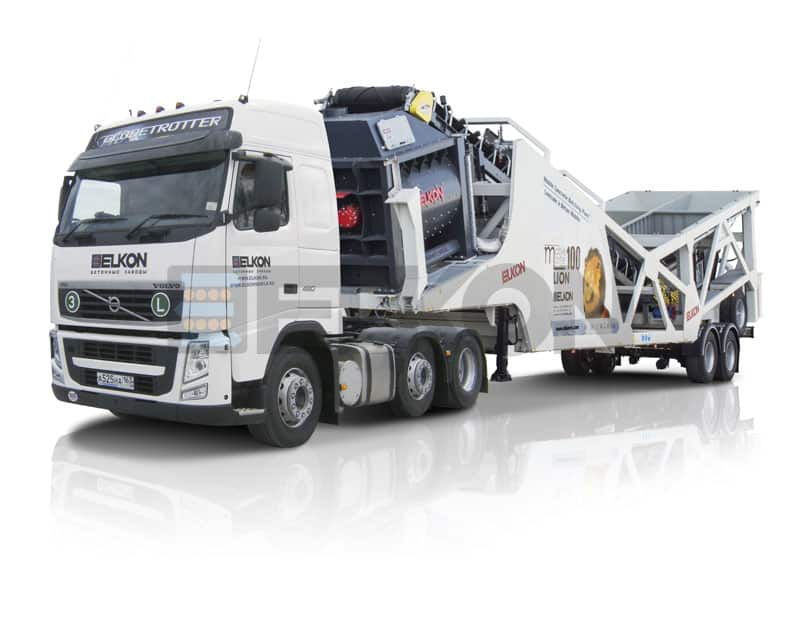

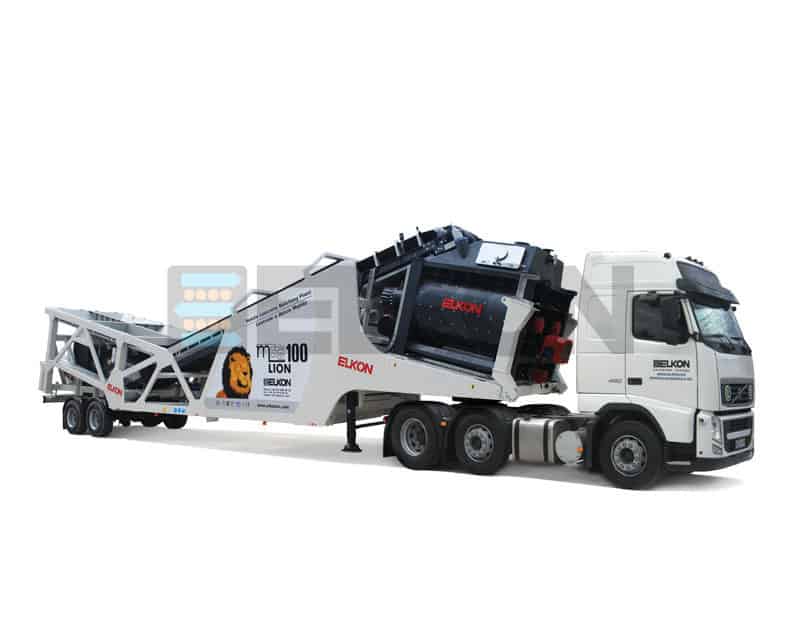

The main unit of the ELKON Mobile Concrete Batching Plants is designed on a mono-block chassis and can be transported by a single truck and trailer.

The ELKON Mobile Master-100 LION Mobile Concrete Batching Plant is equipped with a 4×22,5 m3 capacity square type aggregate bin and 3000/2000 l. or 3750/2500 l. twin shaft mixer.

The ELKON Mobile Master-100 LION+ is equipped with a higher capacity aggregate, cement and water weigh hoppers which are suitable for 3750/2500 l. twin shaft mixer.

4 different types of aggregates can be stored in the aggregates bin and the aggregate feeding system can be done either by concrete ramp or optional automated aggregate feeding system (eliminates concrete ramp requirement).
