Elkomix-90 Quick Master

The ELKOMIX-90 QUICK MASTER Compact Concrete Batching Plant is equipped with a 2250/1500 l. ELKON twin shaft mixer and can reach 75 m³ vibrated concrete production capacity in an hour by producing 1.5 m3 concrete in every batch.

ELKON Compact Concrete Batching Plants, provides the following benefits to its users:

– Quick and easy installation (only 2 days)
– Cost effective transportation
– Installation in a confined space
– Quick and easy relocation
– Flexibility in the configuration
– Minimum foundation cost (flat concrete surface is adequate for installation)
– Easy maintenance and low operating costs
– High production performance with optimised automation system

Mixer Types

Twin Shaft

Twin Shaft

Aggregate Bin Types

Inline

Inline

Aggregate Transfer Types

Conveyor

Conveyor

Production Types

Wet

Wet

Capacity75 m 3 /h
The Capacity of Aggregate Silo4x20 m 3
The Capacity of Aggregate Weigh Hopper3300 kg
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity2250 / 1500 l
Mixer TypeTwinshaft
Cement Weighing Capacity900 kg
Water Weighing Capacity450 kg
Additive Weighing Capacity2x25 l
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded
Cement Screw Diameter (Ø)273 mm
Compressor Included
Capacity98 yd 3 /h
The Capacity of Aggregate Silo4x26 yd 3
The Capacity of Aggregate Weigh Hopper7275 lb
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity3 / 2 yd 3
Mixer TypeTwinshaft
Cement Weighing Capacity1984 lb
Water Weighing Capacity992 lb
Additive Weighing Capacity2x6,6 gal
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded
Cement Screw Diameter (Ø)10 in
CompressorIncluded

Photo Gallery

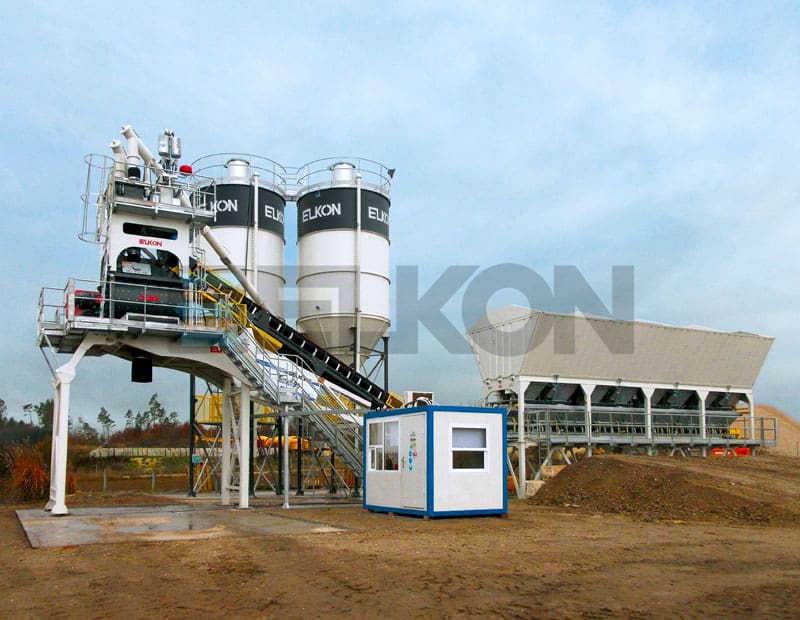

  • Elkomix-90 Quick Master

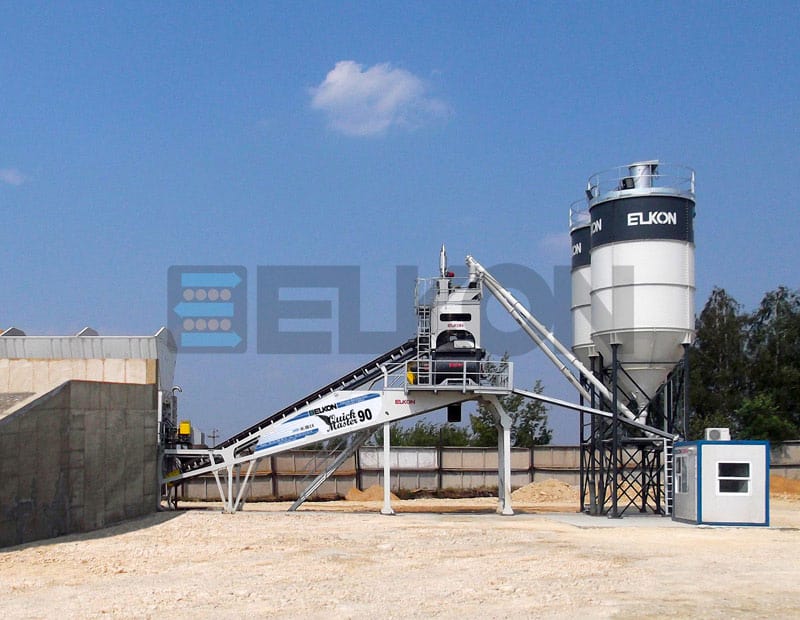

  • Elkomix-90 Quick Master

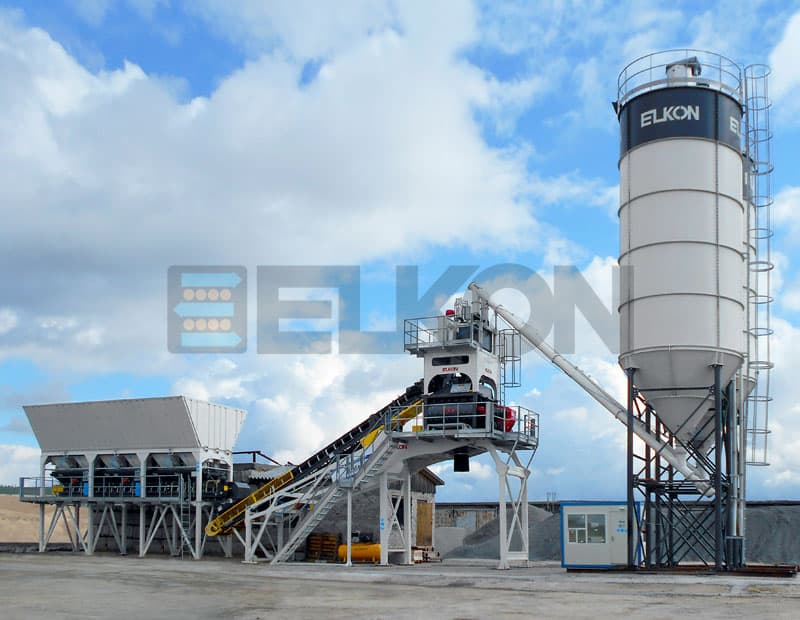

  • Elkomix-90 Quick Master

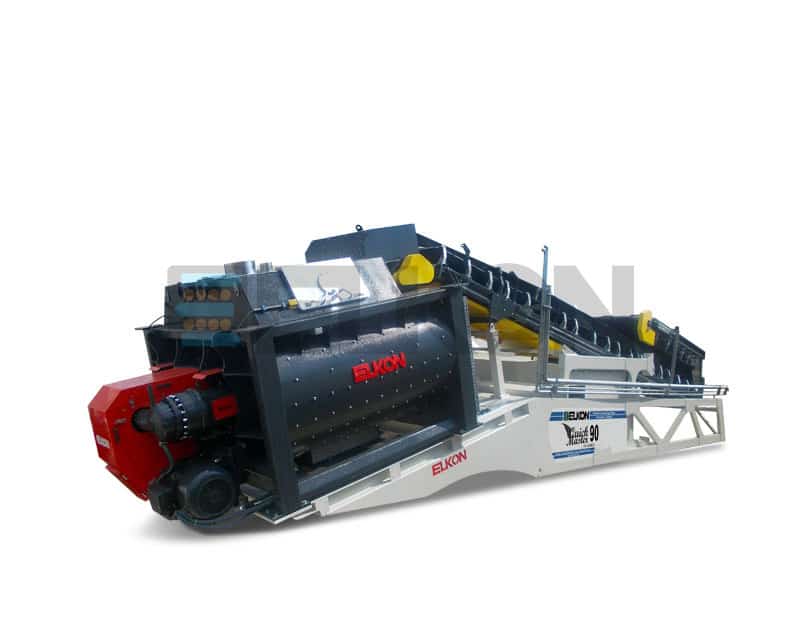

  • Elkomix-90 Quick Master
  • Elkomix-90 Quick Master
  • Elkomix-90 Quick Master

Product Details

ELKON engineers aimed to combine the advantages of mobile concrete batching plants along with easy transportation by using standard containers during the design phase of the Quick Master Compact Concrete Batching Plant series. As a consequence, shipping costs are significantly reduced, depending on the destination.

The Elkomix-90 Quick Master compact concrete batching plant, which is pre-installed and pre-wired, can be installed very quickly on the job site and be ready for concrete production within 1 day.

The Elkomix-90 Quick Master compact concrete batching plant, which has transfer conveyor system for transferring aggregate, can be installed on a flat surface.
