Elkomix-120 Quick Master

The ELKOMIX-120 QUICK MASTER Compact Concrete Batching Plant is equipped with a 3000/2000 l. ELKON twin shaft mixer and a 4×20 m³ aggregate storage bin. It can be transported quickly and economically due to its folding and modular designed structure.

ELKON Compact Concrete Batching Plants, provides the following benefits to its users:

– Quick and easy installation (only 2 days)
– Cost effective transportation
– Installation in a confined space
– Quick and easy relocation
– Flexibility in the configuration
– Minimum foundation cost (flat concrete surface is adequate for installation)
– Easy maintenance and low operating costs
– High production performance with optimised automation system

Mixer Types

Twin Shaft

Twin Shaft

Aggregate Bin Types

Square

Square

Inline

Inline

Aggregate Transfer Types

Conveyor

Conveyor

Bucket

Bucket

Production Types

Wet

Wet

Capacity100 - 110* m 3 /h
The Capacity of Aggregate Silo4x20 m 3
The Capacity of Aggregate Weigh Hopper5000 kg
Loading Type of Aggregate to the MixerSkip Hoist / Transfer Conveyor*
Mixer Capacity3000 / 2000 l or 3375 / 2250* l
Mixer TypeTwinshaft
Cement Weighing Capacity1300 kg
Water Weighing Capacity600 kg
Additive Weighing Capacity2x25 l
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built-in)
Cement Screw Diameter (Ø)Ø 273 mm
Compressor Included
Capacity131 - 144* yd3/h
The Capacity of Aggregate Silo4x26 yd 3
The Capacity of Aggregate Weigh Hopper11023 lb
Loading Type of Aggregate to the MixerSkip Hoist / Transfer Conveyor*
Mixer Capacity4 / 2,6 yd 3 or 4,5 / 3* yd 3
Mixer TypeTwinshaft
Cement Weighing Capacity2866 lb
Water Weighing Capacity1323 lb
Additive Weighing Capacity2x6,6 gal
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded (Built in)
Cement Screw Diameter (Ø)10 in
CompressorIncluded

Photo Gallery

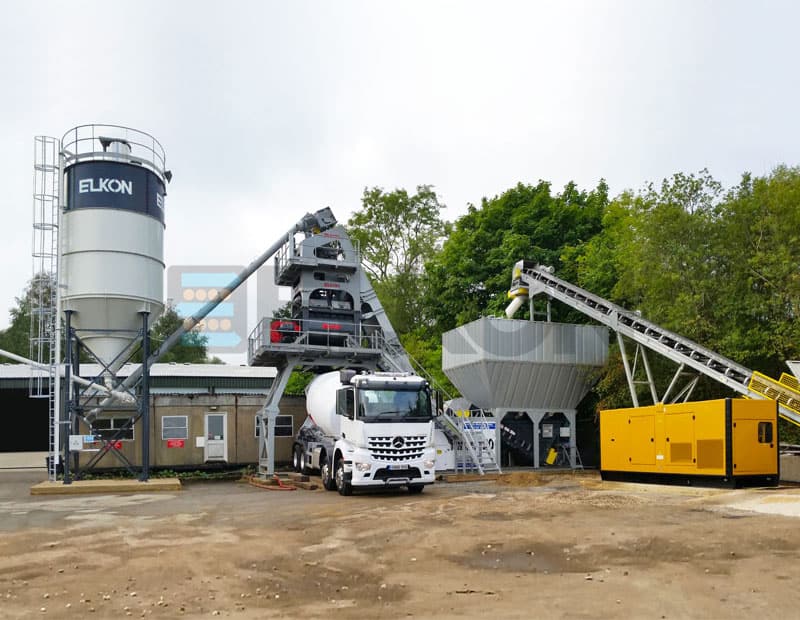

  • Elkomix-120 Quick Master

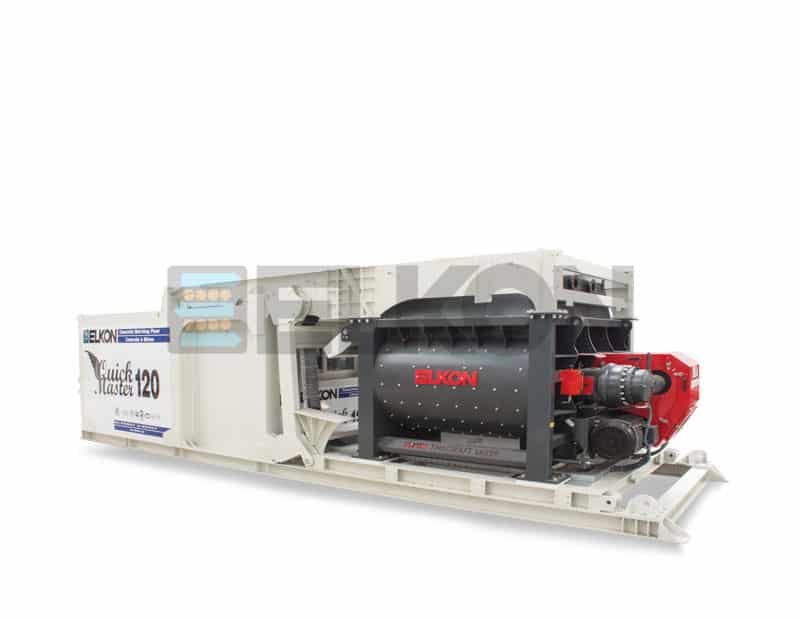

  • Elkomix-120 Quick Master

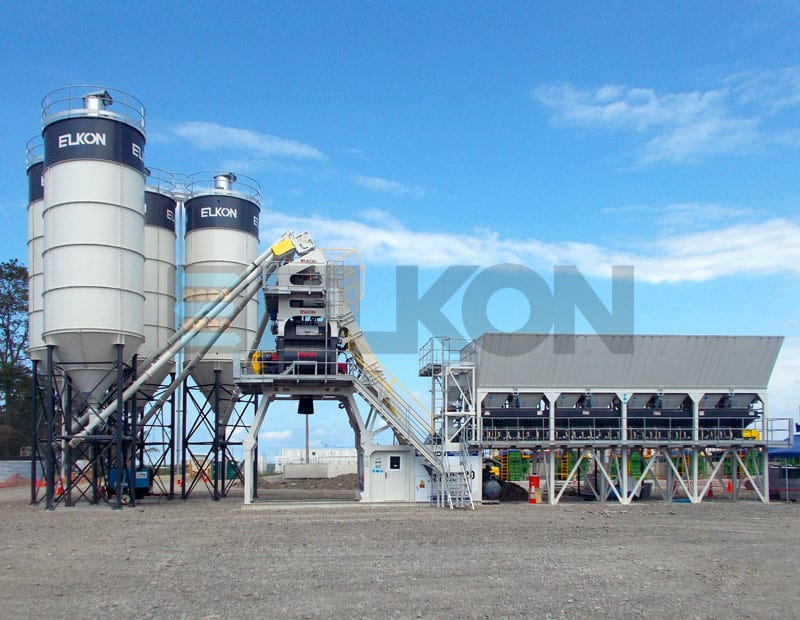

  • Elkomix-120 Quick Master

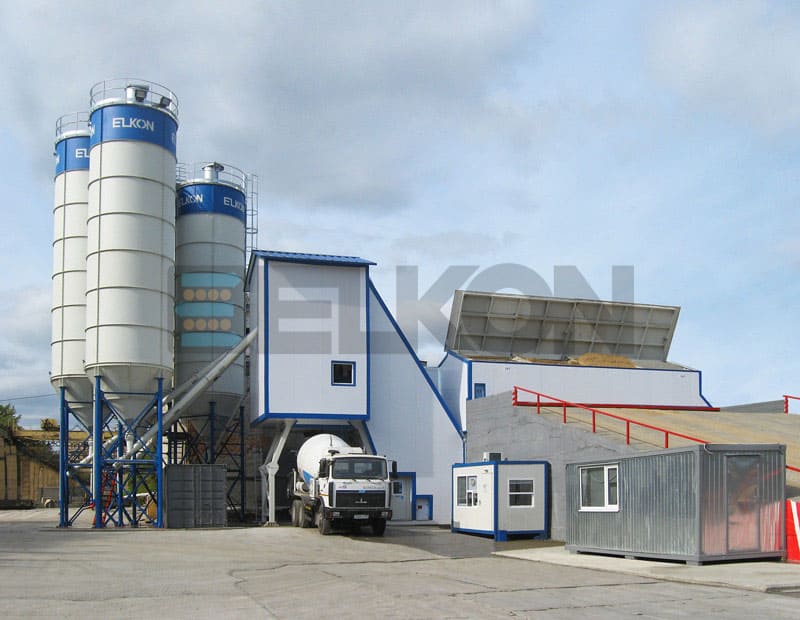

  • Elkomix-120 Quick Master

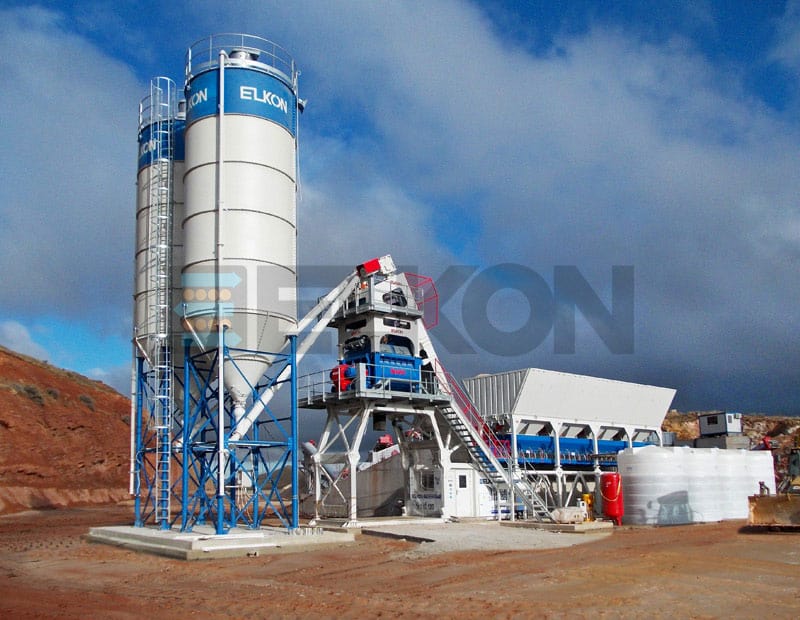

  • Elkomix-120 Quick Master

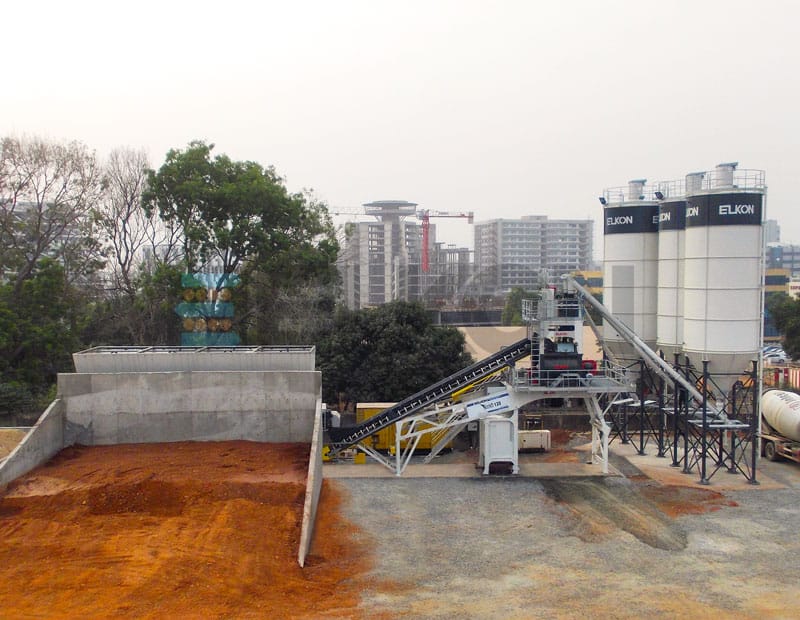

  • Elkomix-120 Quick Master

Product Details

ELKON engineers aimed to combine the advantages of mobile concrete batching plants along with the easy transportation advantage by using standard containers during the design phase of Quick Master Compact Concrete Batching Plant series. As a consequence, shipping costs are significantly reduced, depending on the destination.

The Elkomix-35 Quick Master compact concrete batching plant, which is pre-installed and pre-wired, can be commissioned very quickly on the job sites and ready for concrete production within 1 day.

The Elkomix-35 Quick Master Compact Concrete Batching Plant along with 1 unit cement silo and an aggregate loading ramp can be installed on a site as small as 12×17 meters.
