Elkomix-60 Quick Master

55 m³/h

Elkomix-60 Quick Master

The ELKOMIX-60 QUICK MASTER which is equipped with a 1500/1000 l. ELKON twin shaft mixer and a 4×15 m³ aggregate storage bin. It can be quickly and economically transported by only 2 units 40’ OT container (or by 2 units TIR) thanks to its folding and modular designed structure.

ELKON Compact Concrete Batching Plants provides the following benefits to its users:

– Quick and easy installation (only 1 day)
– Cost effective transportation (2 units 40’OT container or 2 units TIR)
– Installation in a confined space
– Quick and easy relocation
– Flexibility in the configuration
– Minimum foundation cost (flat concrete surface is adequate for installation)
– Easy maintenance and low operating costs
– High production performance with optimized automation system

Mixer Types

Twin Shaft

Twin Shaft

Planetary

Planery

Aggregate Bin Types

Square

Square

Inline

Inline

Aggregate Transfer Types

Bucket

Bucket

Conveyor

Conveyor

Production Types

Wet

Wet

Dry

Dry

Capacity50 - 55 m 3 /h
The Capacity of Aggregate Silo4x15 m 3 / 3x20 m 3
The Capacity of Aggregate Weigh Hopper2500 kg
Loading Type of Aggregate to the MixerSkip Hoist / Transfer Conveyor
Mixer Capacity1500 / 1000 l
Mixer TypeTwinshaft / Planetary
Cement Weighing Capacity600 kg
Water Weighing Capacity300 kg
Additive Weighing Capacity2x25 l
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded
Cement Screw Diameter (Ø)Ø 220 mm
Compressor Included
Capacity65 - 72 yd 3 /h
The Capacity of Aggregate Silo4x20 yd 3 / 3x26 yd 3
The Capacity of Aggregate Weigh Hopper5511 lb
Loading Type of Aggregate to the MixerSkip Hoist / Transfer Conveyor
Mixer Capacity2 / 1,3 yd 3
Mixer TypeTwinshaft / Planetary
Cement Weighing Capacity1323 lb
Water Weighing Capacity661 lb
Additive Weighing Capacity2x6,6 gal
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded
Cement Screw Diameter (Ø)8 in
CompressorIncluded

Photo Gallery

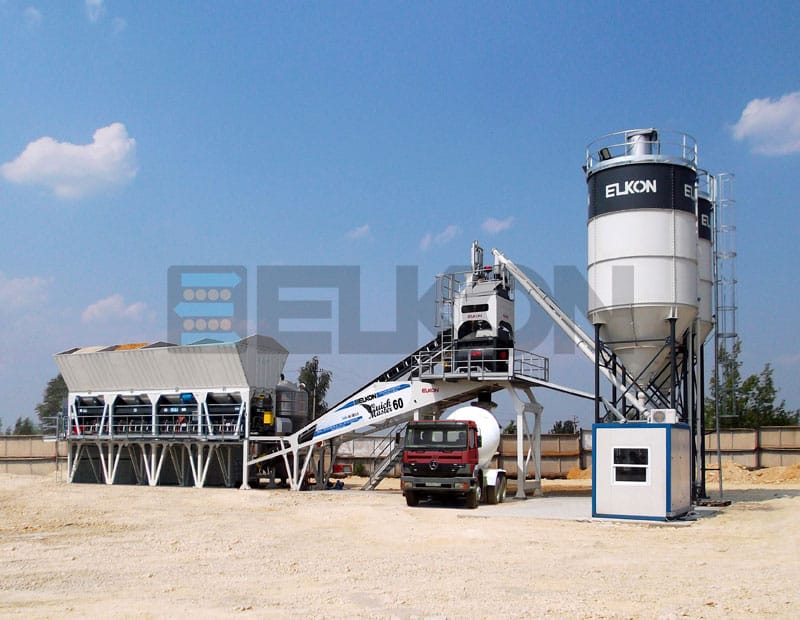

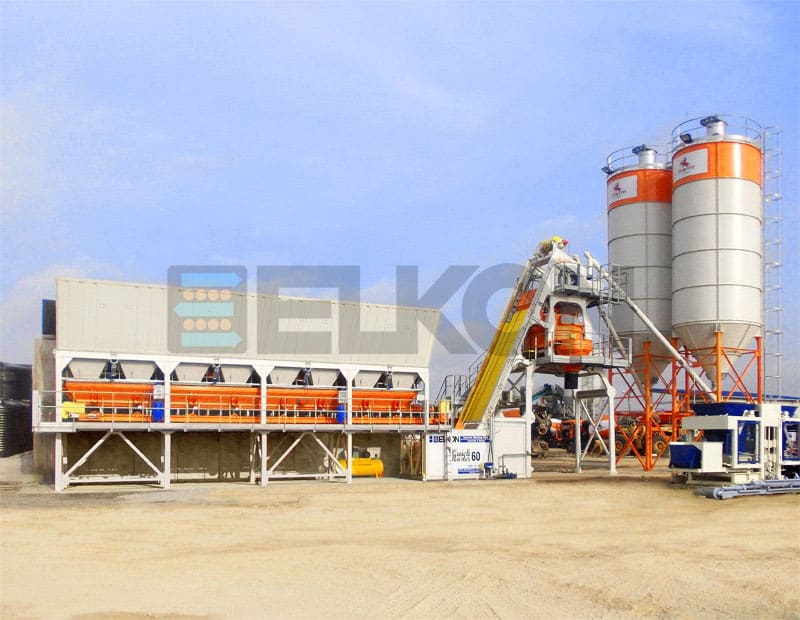

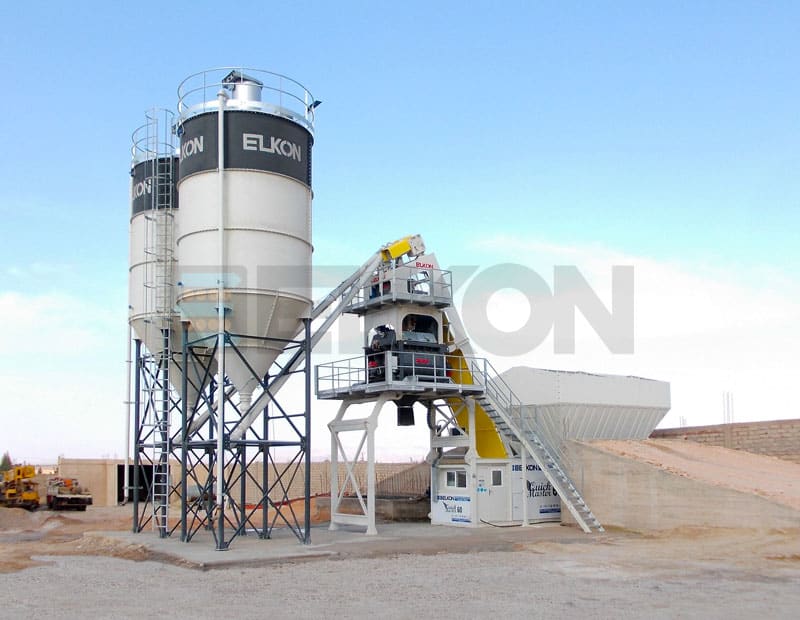

  • Elkomix-60 Quick Master
  • Elkomix-60 Quick Master
  • Elkomix-60 Quick Master
  • Elkomix-60 Quick Master
  • Elkomix-60 Quick Master
  • Elkomix-60 Quick Master
  • Elkomix-60 Quick Master
  • Elkomix-60 Quick Master

Product Details

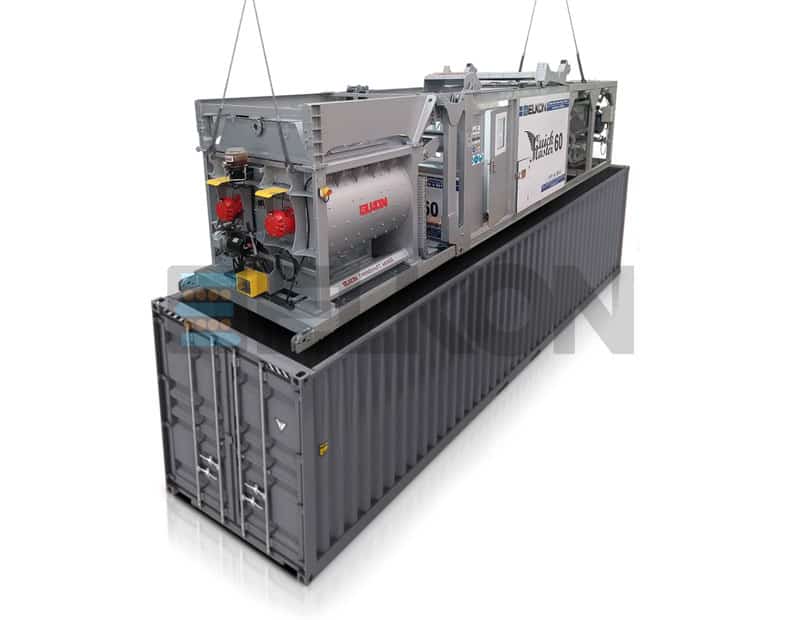

ELKON engineers aimed to combine the advantages of mobile concrete batching plants along with easy transportation by standard containers during the design phase of Quick Master Compact Concrete Batching Plant series. As a consequence, shipping costs are significantly reduced, depending on the destination.

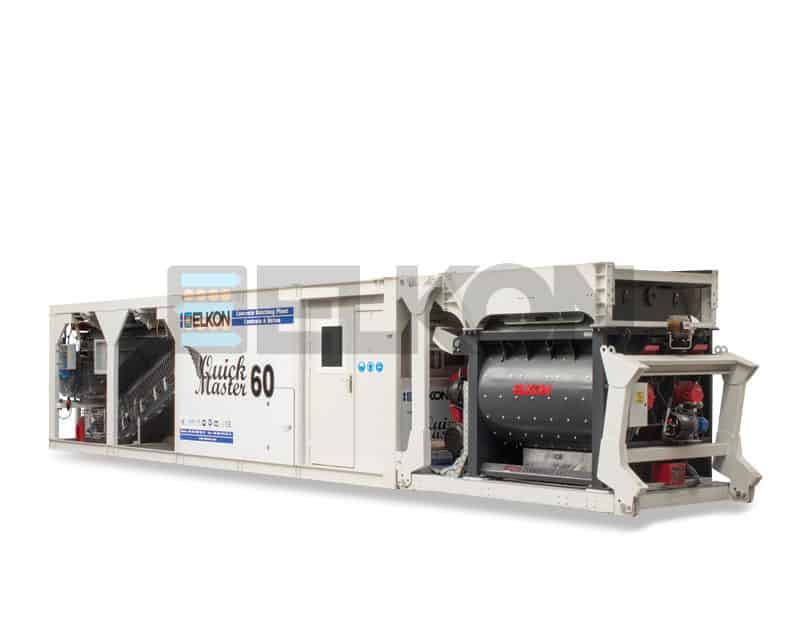

The Elkomix-60 Quick Master compact concrete batching plant, which is pre-installed and pre-wired before shipment, can be commissioned very quickly on job sites and be ready for concrete production within 1 day.

Both the skip bucket and transfer conveyor option are available for transferring aggregate and the plant can be installed on a flat concrete surface for both options.
