Elkomix-135 Quick Master
120 m³/h
The ELKOMIX-135 QUICK MASTER Compact Concrete Batching Plant is equipped with a 4500/3000 l. ELKON twin shaft mixer and has the highest capacity in the ELKON Quick Master Compact Concrete Batching Plant series. The plant can also be commissioned quickly and economically due to its folding and modular designed structure.
ELKON Compact Concrete Batching Plants, provides the following benefits to its users:
– Quick and easy installation (only 2 days)
– Cost effective transportation
– Installation in a confined space
– Quick and easy relocation
– Flexibility in the configuration
– Lowest foundation cost (flat concrete surface is adequate for installation)
– Easy maintenance and low operating costs
– High production performance with optimised automation system
Mixer Types
Twin Shaft
Aggregate Bin Types
Inline
Aggregate Transfer Types
Bucket
Conveyor
Production Types
Wet
| Capacity | 120 m 3 /h |
| The Capacity of Aggregate Silo | 4x20 m 3 |
| The Capacity of Aggregate Weigh Hopper | 6600 kg |
| Loading Type of Aggregate to the Mixer | Skip Hoist / Transfer Conveyor |
| Mixer Capacity | 4500 / 3000 l |
| Mixer Type | Twinshaft |
| Cement Weighing Capacity | 1600 kg |
| Water Weighing Capacity | 900 kg |
| Additive Weighing Capacity | 2x25 l |
| Control System | SIEMENS or ABB (PLC - PC) |
| Operator Cabinet | Included (Built-in) |
| Cement Screw Diameter (Ø) | Ø 273 mm |
| Compressor | Included |
| Capacity | 157 yd 3 /h |
| The Capacity of Aggregate Silo | 4x26 yd 3 |
| The Capacity of Aggregate Weigh Hopper | 14550 lb |
| Loading Type of Aggregate to the Mixer | Skip Hoist / Transfer Conveyor |
| Mixer Capacity | 6 / 4 yd 3 |
| Mixer Type | Twinshaft |
| Cement Weighing Capacity | 3527 lb |
| Water Weighing Capacity | 1984 lb |
| Additive Weighing Capacity | 2x6,6 gal |
| Control System | SIEMENS or ABB (PLC - PC) |
| Operator Cabinet | Included (Built in) |
| Cement Screw Diameter (Ø) | 10 in |
| Compressor | Included |

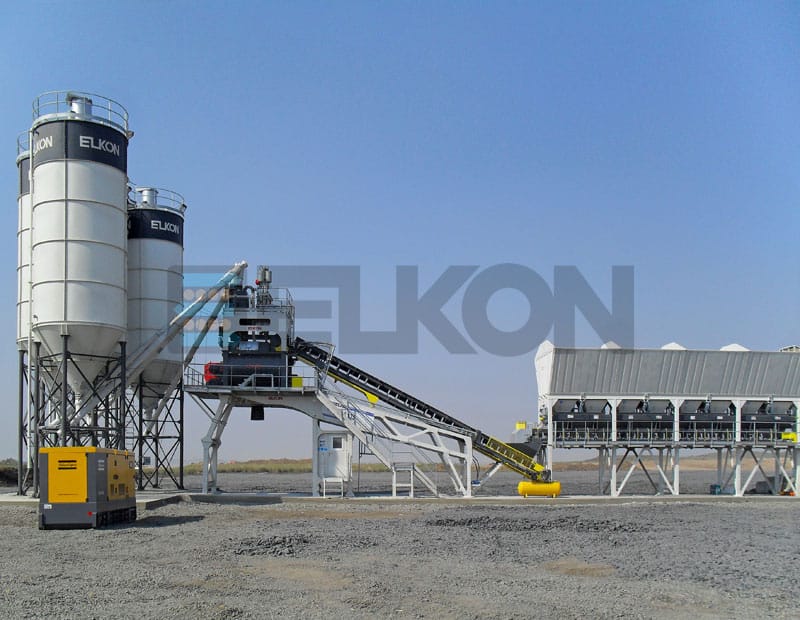

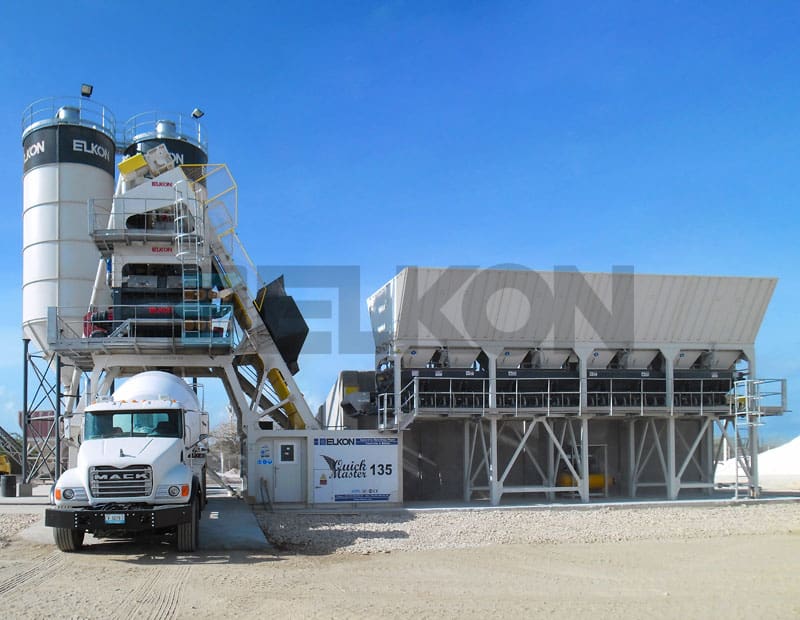

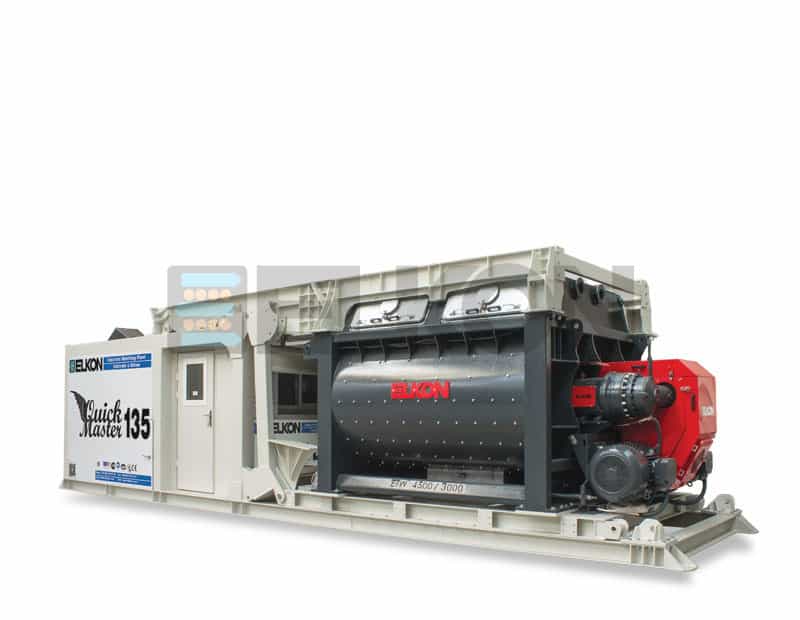

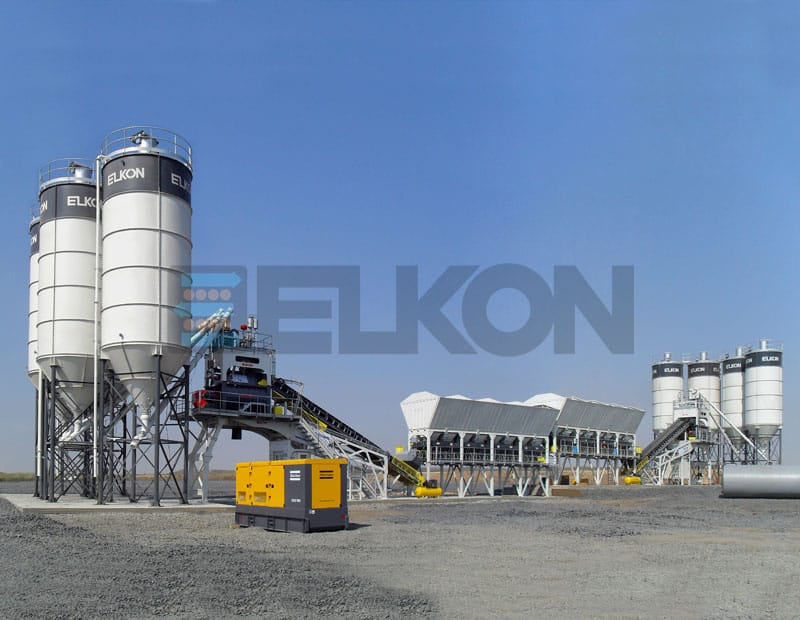

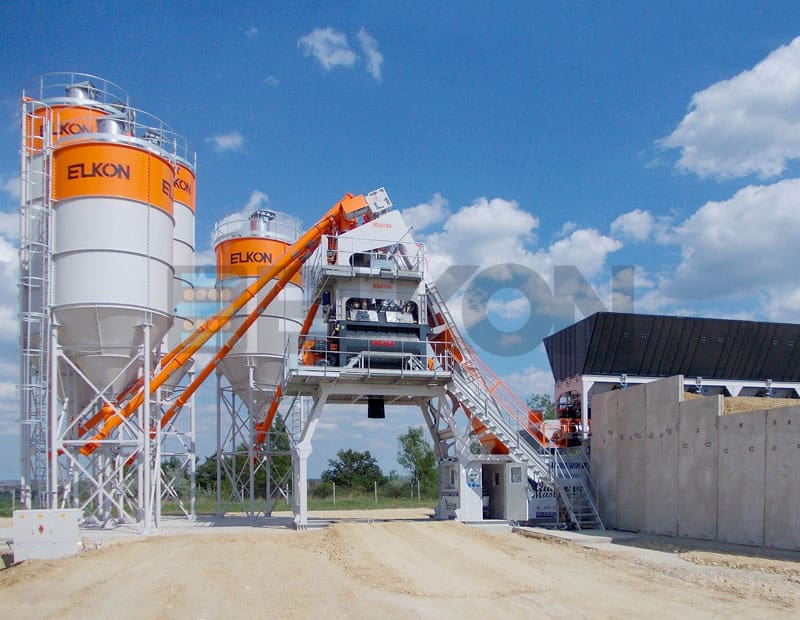

Photo Gallery
Elkomix-135 Quick Master Product Details
ELKON engineers aimed to combine the advantages of mobile concrete batching plants along with the easy transportation by using standard containers during the design phase of Quick Master Concrete Batching Plant series. As a consequence, shipping costs are reduced, depending on the destination.
The Elkomix-135 Quick Master compact concrete batching plant, which is pre-installed and pre-wired, can be installed & operational very quickly on the job site and ready for concrete production within 2 days.
Both the skip bucket and transfer conveyor option are available for transferring aggregate and the plant can be installed on a flat surface without concrete footings for both options.
