Elkomix-35 Quick Master
30 m³/h

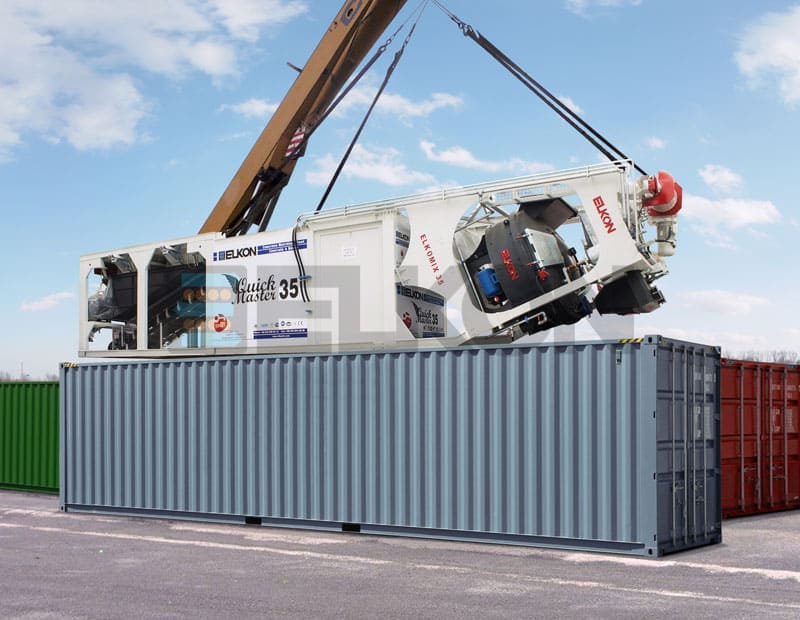

The ELKOMIX-35 QUICK MASTER has a 30 m³/h concrete production capacity and can be quickly and economically transported by only 1 unit 40’ OT container (or by a TIR) thanks to its folding and modular designed structure.
ELKON Compact Concrete Batching Plants, which reflect ELKON’s manufacturing culture based on high technology and experience since 1975, provides the following benefits to its users:
– Quick and easy installation (only 1 day)
– Cost effective sea and land transportation (by 1 unit 40’OT Container or 1 unit TIR)
– Possibility of installation on a confined space (12×17 meters)
– Quick and easy relocation
– Flexibility in the configuration
– Minimum foundation cost (only flat concrete surface is adequate for installation)
– Easy maintenance and low operating costs
– High production performance with optimized automation system
Mixer Types
Planery
Pan
Aggregate Bin Types
Square
Inline
Aggregate Transfer Types
Bucket
Production Types
Wet
| Capacity | 30 m 3 /h |
| The Capacity of Aggregate Silo | 4x7,5 / 3x10 m3 |
| The Capacity of Aggregate Weigh Hopper | 4x7,5 / 3x10 m3 |
| Loading Type of Aggregate to the Mixer | Skip Hoist |
| Mixer Capacity | 750/500 L |
| Mixer Type | Pan / Planetary |
| Cement Weighing Capacity | 300 kg |
| Water Weighing Capacity | 200 kg |
| Additive Weighing Capacity | 2x15 l |
| Control System | SIEMENS or ABB (PLC - PC) |
| Operator Cabinet | Included (Built-in) |
| Cement Screw Diameter (Ø) | Ø 165 mm |
| Compressor | Included |
| Capacity | 39 yd3/h |
| The Capacity of Aggregate Silo | 4x10 / 3x13 yd3 |
| The Capacity of Aggregate Weigh Hopper | 2756 lb |
| Loading Type of Aggregate to the Mixer | Skip Hoist |
| Mixer Capacity | 1 / 0,7 yd3 |
| Mixer Type | Pan / Planetary |
| Cement Weighing Capacity | 661 lb |
| Water Weighing Capacity | 441 lb |
| Additive Weighing Capacity | 2x4 gal |
| Control System | SIEMENS or ABB (PLC - PC) |
| Operator Cabinet | Included (Built-in) |
| Cement Screw Diameter (Ø) | 6 in |
| Compressor | Included |

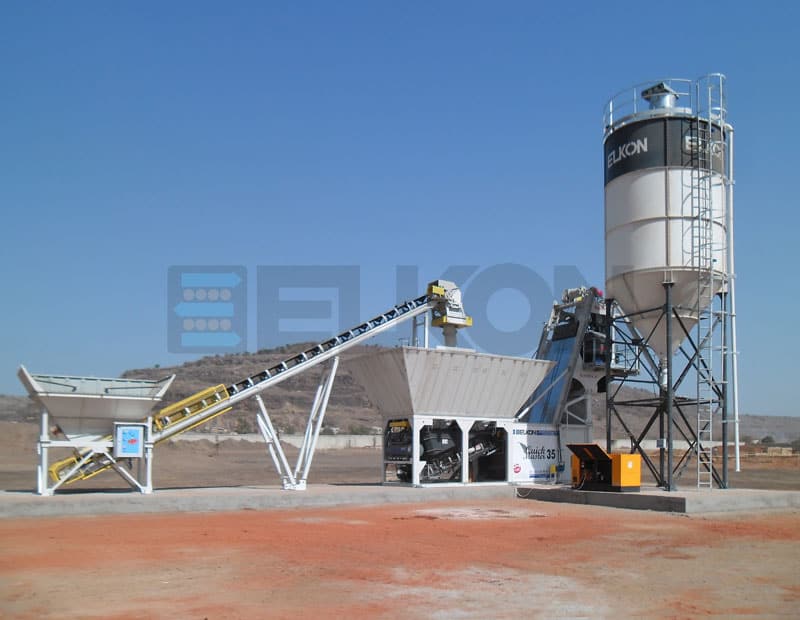

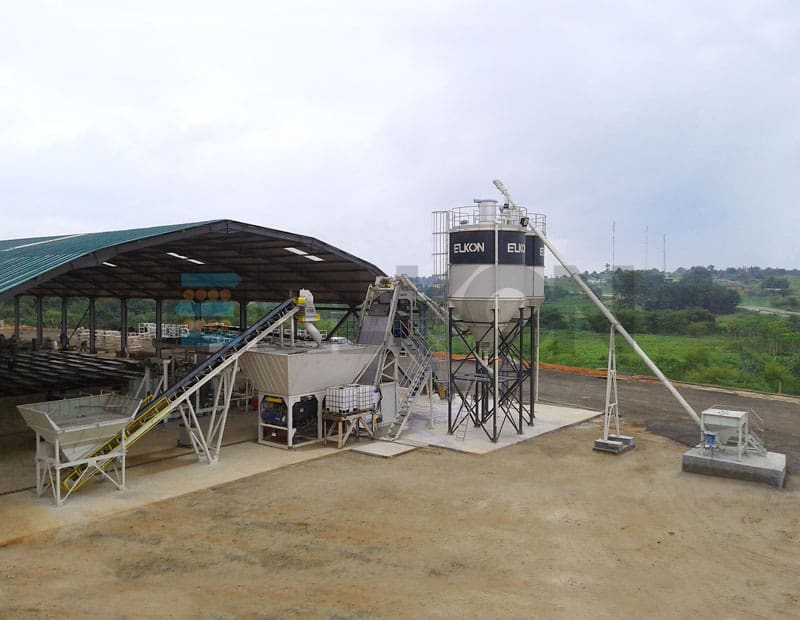

Photo Gallery
Elkomix-35 Quick Master – Product Details
ELKON engineers aimed to combine the advantages of mobile concrete batching plants along with the easy transportation advantage by standard containers during the design phase of Quick Master Compact Concrete Batching Plant series. As a consequence, shipping costs are significantly reduced, depending on the destination.

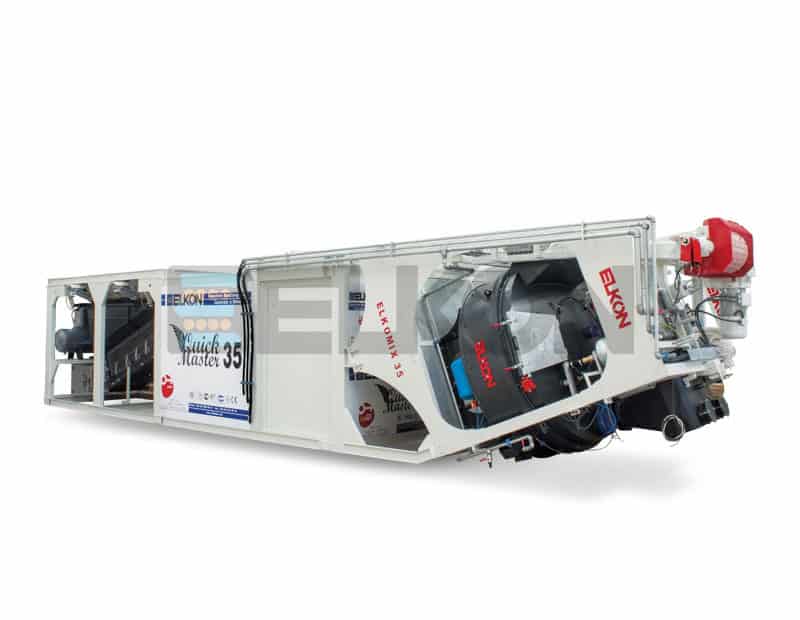

The Elkomix-35 Quick Master compact concrete batching plant, which is pre-installed and pre-wired prior to shipment, can be commissioned very quickly on job sites and ready for concrete production within only 1 day.

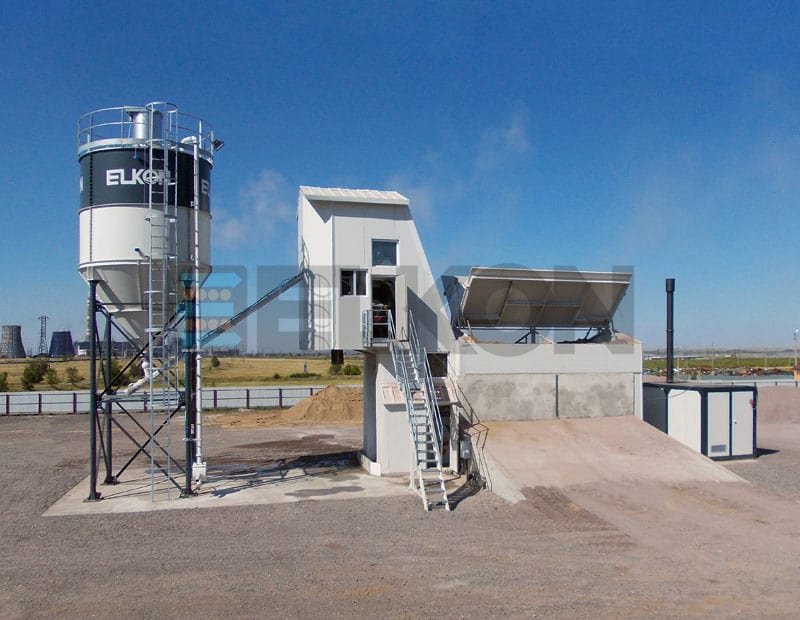

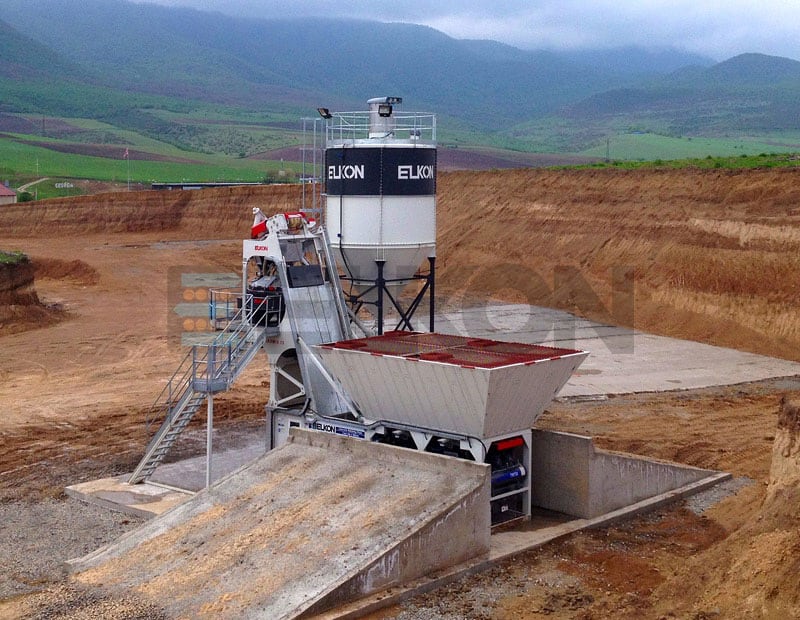

The Elkomix-35 Quick Master Compact Concrete Batching Plant along with 1 unit cement silo and an aggregate loading ramp can be installed on a site as small as 12×17 meters.
