Elkomix-180

ELKON Stationary Concrete Batching Plants have been manufactured since the 1980’s. The ELKOMIX-180 stationary concrete batching plant is equipped with a 6750/4500 l. twin shaft mixer.

The ELKOMIX-180 Stationary Concrete Batching Plant has a 175 m³/h concrete production capacity and provides the following benefits to its users:

– Flexibility in the configuration
– High production performance and high productivity
– Easy installation due to its modular structure
– Variable layout options
– Wide operating and maintenance areas
– Easy maintenance and low operating costs

Mixer Types

Twin Shaft

Twin Shaft

Aggregate Bin Types

Inline

Inline

Aggregate Transfer Types

Conveyor

Conveyor

Production Types

Wet

Wet

Dry

Dry

Capacity175 m 3 /h
The Capacity of Aggregate Silo4x30 m 3
The Capacity of Aggregate Weigh Hopper2x4950 kg / 9900 kg
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity6750 / 4500 l
Mixer TypeTwin Shaft
Cement Weighing Capacity2500 kg
Water Weighing Capacity1100 kg
Additive Weighing Capacity2x50 l
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded
Cement Screw Diameter (Ø)323 mm
CompressorIncluded
Capacity229 yd 3 /h
The Capacity of Aggregate Silo4x39 yd 3
The Capacity of Aggregate Weigh Hopper2x10913 lb / 21826 kg
Loading Type of Aggregate to the MixerTransfer Conveyor
Mixer Capacity9 / 6 yd 3
Mixer TypeTwin Shaft
Cement Weighing Capacity5511 lb
Water Weighing Capacity2425 lb
Additive Weighing Capacity2x13,2 gal
Control SystemSIEMENS or ABB (PLC - PC)
Operator CabinetIncluded
Cement Screw Diameter (Ø)12 in
CompressorIncluded

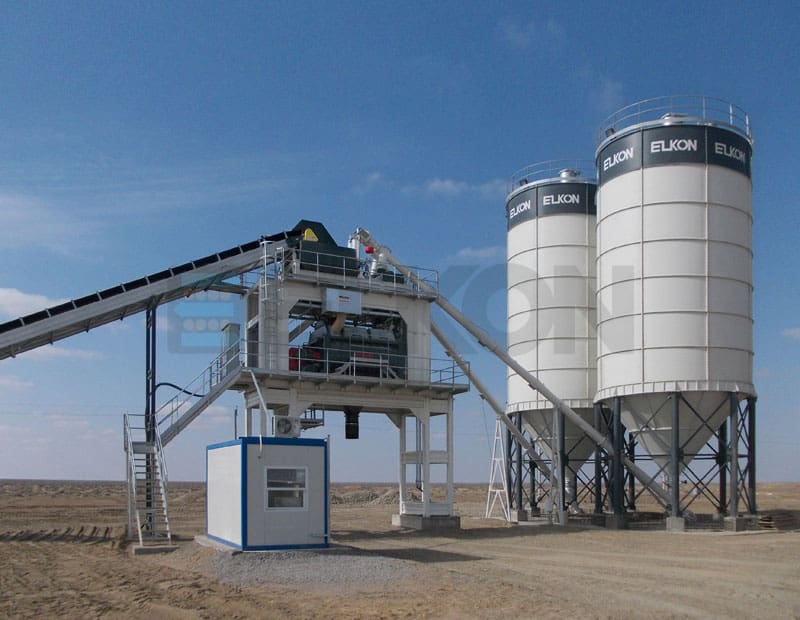

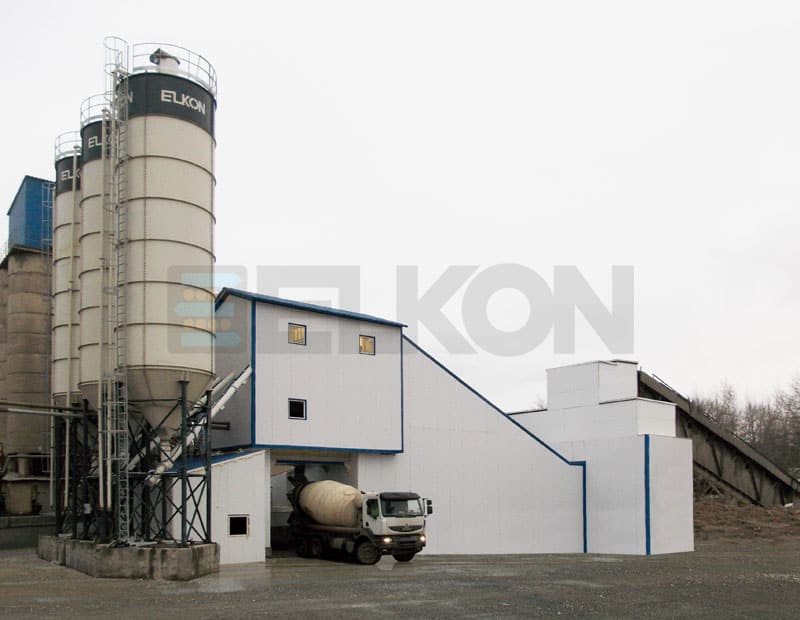

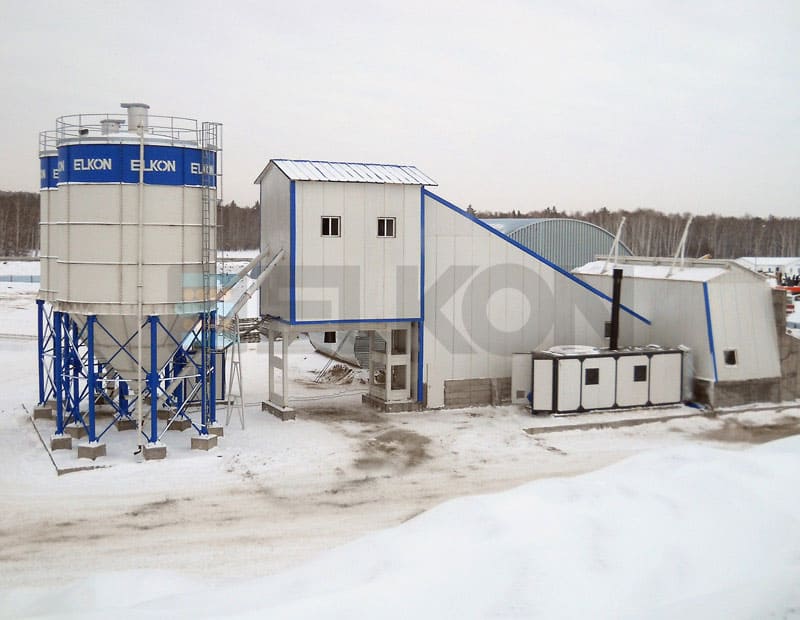

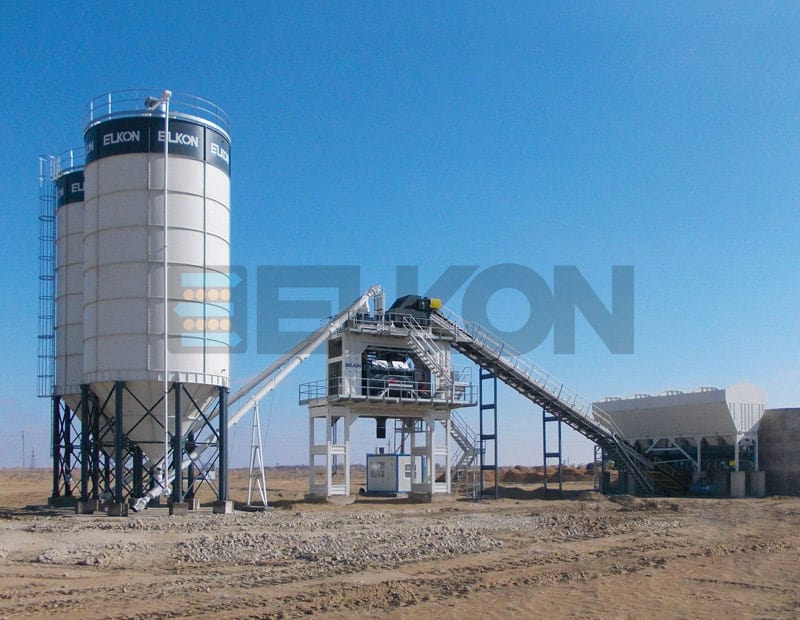

Photo Gallery

  • Elkomix-180
  • Elkomix-180
  • Elkomix-180
  • Elkomix-180
  • Elkomix-180
  • Elkomix-180

Product Details

ELKON stationary concrete batching plants are preferred by companies which need higher concrete production capacities and want to use the concrete batching plant for an extended period of time in the same area.

ELKON, with more than 40 years of experience in the field, has designed and manufactured stationary concrete batching plants, which are also known as conventional type concrete batching plants. ELKON designed and manufactured the stationary concrete batching plant as modular as possible, therefore they can be transported in a shorter period of time compared to similar concrete batching plants.

The ELKOMIX-180 stationary concrete batching plant is equipped with an aggregate holding hopper to hold the required materials at the top of the mixer after weighing the next batch while the mixer is batching (available only in the transfer conveyor option). The ELKOMIX-180 stationary concrete batching plant guarantees the maximum production efficiency by providing the optimum cycle time.

Depending on the requirement, aggregate storage bins can be produced with 3, 4, 5, 6 or even more compartments and different materials can be used as required. Depending on the installation area either a transfer conveyor or a skip bucket can be used for transferring aggregates to the mixer.

ELKON provides a dry type concrete batching plant (transit mix concrete plant) option without a mixer. Wet and dry concrete production in one concrete plant is possible with an additional dry concrete discharge line to the wet type concrete batching plant (central mix concrete plant). ELKON provides flexibility to its users to meet various requirements of job site layouts & conditions and special projects, etc.

ELKON stationary concrete batching plants can be equipped with two mixers on the same installation so the production capacity is doubled. 2 different concrete types can be produced at the same time.

ELKON installs stationary concrete batching plants on installation sites to provide the maximum saving and productivity on the available space and if required a bespoke stationary concrete batching plant can be designed depending on the site layout.

Please contact us for the most appropriate concrete batching plant solution for your requirements.
